20mm Harden High Carbon Steel Iron Balls Bicycle Carbon Metal Grinding Balls AISI1085

Product Details:
Place of Origin: China
Brand Name: JN
Certification: SGS ISO
Model Number: 20mm
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability: 50 Tons per Month

Detail Information

Product Name: Bicycle Steel Balls Feature: High Hardness , Good Wear-Resistance
Hardness: HRC58-HRC63 Application: Ball Mill
Material Type: High Carbon AISI1085 Ball Shape: Round
High Light:

precision steel balls

,

soft steel balls

Product Description

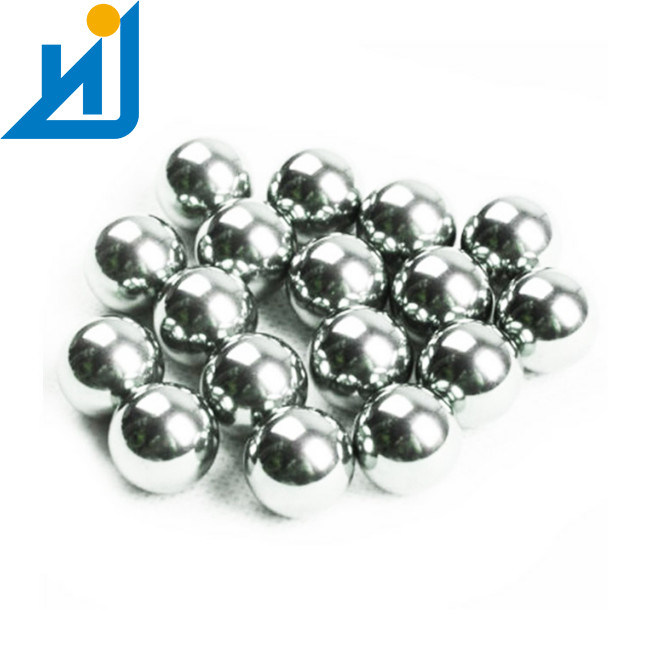

 20mm Harden High Carbon Steel Iron Balls Bicycle Carbon Metal Grinding Balls AISI1085​



Carbon steel balls are made from a combination of steel and carbon, with carbon present in concentrations lower than 0.093%.



The carbon acts as a hardening agent, providing additional strength, at a lower cost than alternative hardening techniques.



They can be used in anything from furniture castors to sliding rails, polishing and milling machines, peening processes,



and welding appliances, depending on the type of carbon steel balls you choose.



Carbon steel balls have excellent surface quality ,high hardness and high load bearing capacity as a result of through hardening.



According to the different materials can be divided into Low carbon steel ball Medium carbon steel ball and High carbon steel ball,



The main material is 1010-1015,1045,1085



According to the hardness can be divided into Soft ball(HRC28) and hard ball (HRC55-60 after heat treatment).



20mm Harden High Carbon Steel Iron Balls Bicycle Carbon Metal Grinding Balls AISI1085 0




AISI1085 Carbon Steel Balls Chemical Composition



Type
%C
%Si
%Mn
%P
%S

%Mo



1085
0.83-0.88
0.10-0.3
0.30-0.70
0.040 max

0.040 max

0.04max







Mechanical Properties



  Soft

Hardened




Density
7.82 g/cm3

7.82 g/cm3



Hardnss 60-90 HRB

55-60 HRC



Tensile Strength 29-43 PSI x 103

43-58 PSI x 103



Young's Modulus 200 GPa



200 GPa




Production Process Of Carbon Steel Balls

Color Heading →Flashing→Heat treating→Hard Grinding →Lapping→Clean→Inspection→Packing

20mm Harden High Carbon Steel Iron Balls Bicycle Carbon Metal Grinding Balls AISI1085 1


Application


Low precision ball bearings, furniture ball bearings, bicycle and automotive steel ball components, agitators, sliding rails,



drawer rails, skates, roller conveyors, castors, locks, bearing units. Utilized in burnishing, polishing and milling machineries.



Furniture rails and rollers, drawers and rolling bearings, locks, oilers and greasers, skates, caddies, toys, belt and



roller conveyors, tumble finishing,Bike and motor-bike components.
