China Stainless Steel Balls manufacturer

Iron Balls Carbon Steel Ball Cemented Carbide 0.9MM 1MM 1.2MM HRC55-HRC63

Product Details:
Place of Origin: China
Brand Name: JN
Certification: SGS ISO
Model Number: 0.9MM 1MM 1.2MM
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability: 25 Tons per Month

Detail Information

Product Name: Carbon Steel Ball Grade: G100
Hardness: HRC55-HRC63 Density: 7.82g/cm3
Young's Modulus: 200GPa Feature: Not Corrosion Resistance
High Light:

precision steel balls

,

soft steel balls

Product Description

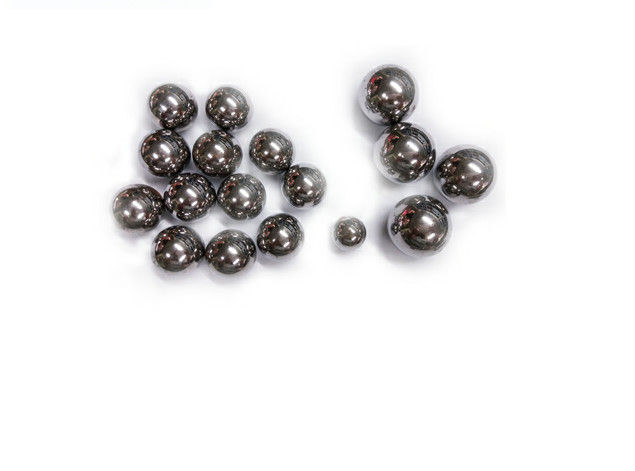

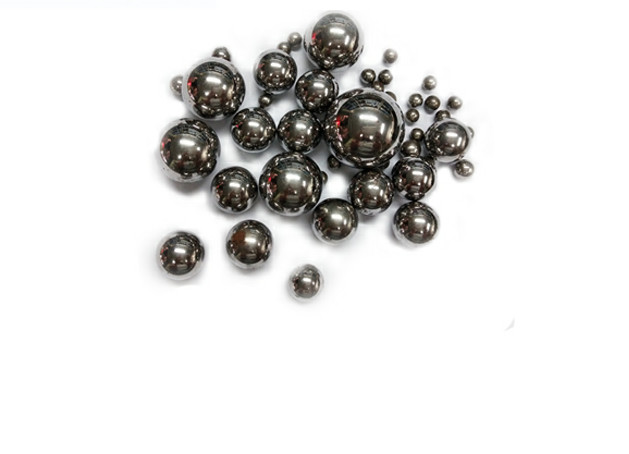

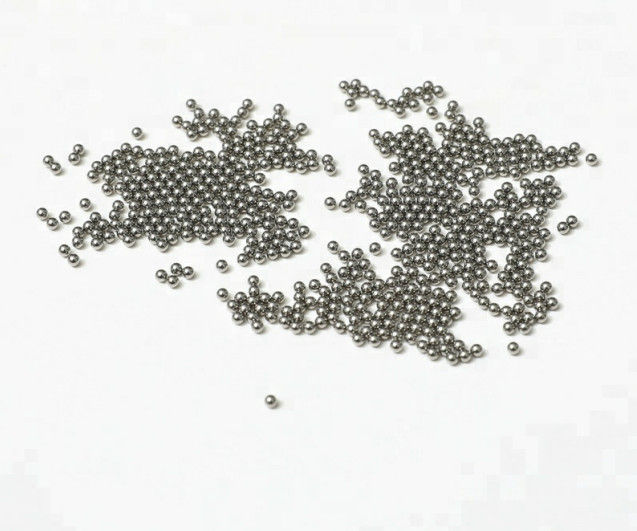

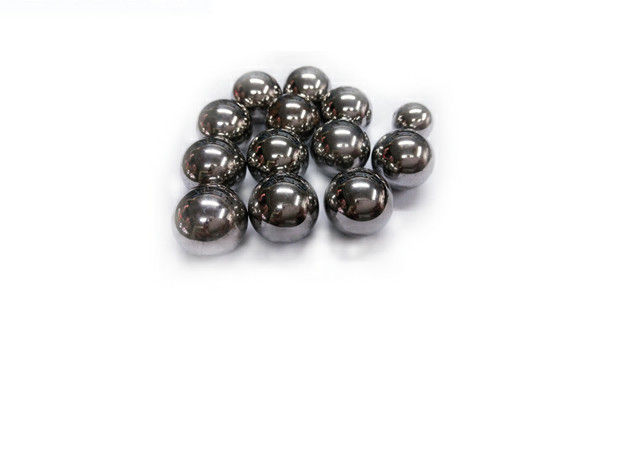

Iron Balls Carbon Steel Ball / Cemented Carbide Steel Balls 0.9MM 1MM 1.2MM





Carbon steel balls are made from a combination of steel and carbon,



with carbon present in concentrations lower than 0.093%.



The carbon acts as a hardening agent, providing additional strength,



at a lower cost than alternative hardening techniques.



They can be used in anything from furniture castors to sliding rails,



polishing and milling machines, peening processes, and welding appliances,



depending on the type of carbon steel balls you choose.



 Chemical Composition



Type
%C
%Si
%Mn
%P
%S
1010
0.08-0.13
0.10-0.35
0.30-0.60
0.040 max
0.050 max
1015
0.12-0.18
0.10-0.35
0.30-0.60
0.040 max
0.050 max


International Standards



ITA
USA
GER
FRA
UK
RUS
CHN
JPN
C10
1010
1.1121
CC10
040A10
10
10
S10C
C15
1015
1.1141
XC12
080M15
15
15
S15C



Physical / mechanical / thermal / electric / magnetic properties

Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
7.82
Young's modulus
E
[GPa]
Mechanical
-
200
Specific heat
c
[J/kg-K]
Thermal
Room temp.
468
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
11.8
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
57.9
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
155
Relative magnetic permeability
µ
-
Magnetic
Ferromagnetic
> 500

Applications
Furniture rails and rollers, drawers and rolling bearings, locks, oilers and greasers, skates, caddies,

toys, belt and roller conveyors, tumble finishing.



Range

Diameters (min/max)
U.o.M.
Diameters (min/max)
U.o.M.
Precision grades (ISO 3290-1 / DIN 5401 / AFBMA)
1.500 - 300.000
[mm]
1/16 - 12
["]
G100-200-300-500-600-700-1000
