China Stainless Steel Balls manufacturer

High Density Anti Corrosiion Tungsten Carbide Ball 16.34mm - 16.98mm

Product Details:
Place of Origin: China
Brand Name: JN
Certification: ISO SGS
Model Number: 16.4 16.5mm 16.6 16.7 16.81 16.85mm
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10tons per month

Detail Information

Product Name: Precision Tungsten Carbide Ball Temperature: 400℃
Density: 14.9 Grade: YG6 YG6X YG8 YG8X YG10
Feature: Higher Hardness And Wear Resistance Hardness: HRA90.5
High Light:

tungsten carbide beads

,

tungsten alloy ball

Product Description

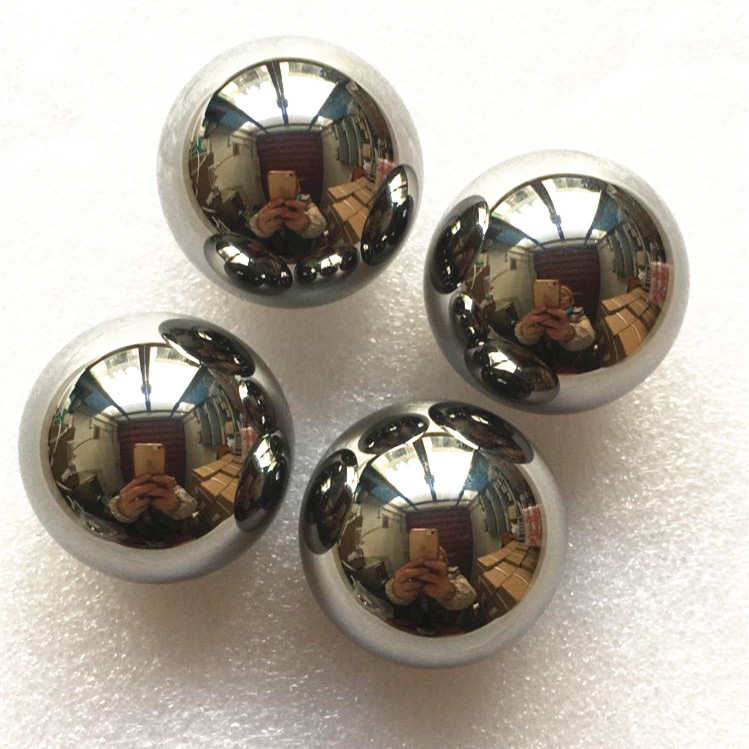

High-Density Anti CorrosiionTungsten Alloy Steel Ball Carbide Ball 16.34mm -16.98mm


Tungsten Carbide Balls

1) Tungsten Carbide Ball is very wear resistant, with some abrasion tests showing it at 30 times hard steel.;



2) It has good corrosive resistance in many environments;



3) It has good long-term dimensional stability which makes a good material for gage applications;



4) Tungsten Carbide is extremely hard, this high

hardness makes tungsten carbide balls a good choice for ball-sizing and they provide premier results



as components of kinematic couplings.



Its good performance at temperatures up to degree 427°C make it a good choice in high temperature applications.



Product Name
Tungsten Carbide balls/Alloy ball

Specification
Φ0.8mm-Φ80.0mm

Trademark
YG6X/YG8/YG6/YG10/YG13

Material
Material : Cobalt tungsten alloy and Tungsten nickel alloy

Cobalt tungsten alloy ball : YG6 , YG6X , YG8 , YG10 , YG13

Tungsten nickel alloy ball : YN6 , YN8 , YN10 , YN12

Grade
G10-G100

Feature
Hardness: 90-92 degrees hardness, density: 14.95 g/cm3, bending strength: 2750 N/mm2, excellent wear resistance and toughness.

Applications
Subtle bearings, precision sealing, measurement tools, squeeze the hole, stamping steel / brass stampings.

Chemical composition
WC
Co

94%
6%




High Density Anti Corrosiion Tungsten Carbide Ball 16.34mm - 16.98mm 0


Physical / mechanical / thermal / electric / magnetic properties

Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
14.82
Young's modulus
E
[GPa]
Mechanical
-
650
Specific heat
c
[J/kg-K]
Thermal
Room temp.
220
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
5.2
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
80.0
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
200
Relative magnetic permeability
µ
-
Magnetic
Slighlty ferrom.
max 12




Tungsten Alloy Steel Ball Application



High Density Anti Corrosiion Tungsten Carbide Ball 16.34mm - 16.98mm 1

About Company



Our company specializes in producing 0.3mm-76.2mm tungsten alloy ball of various materials,



customized non-standard (for the convenience of customers,



we developed the production process of the alloy ball from the order of 3, fills the domestic blank),



accuracy in the G10 - G100, products are widely used in bearings, instruments, meters,



various hardware punching, valves, grinding, hardness tester, pump valves, petroleum, chemical, and metering equipment.



Our company has several technical and research personnel who can diagnose customers



and provide more professional services.
