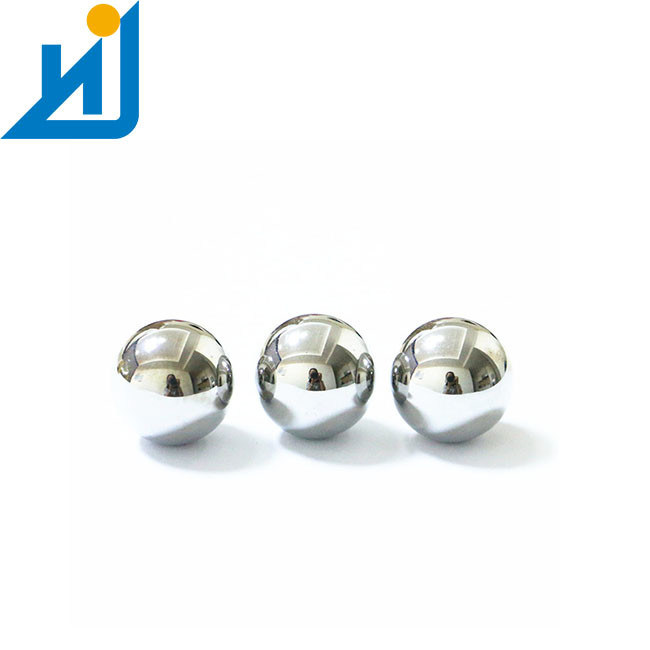

Solid ISO9001SGS G100 AISI 304 316 Grinding Stainless Steel Ball For Bearings 3mm 6mm 8mm 24mm

Product Details:
Place of Origin: Shandong
Brand Name: JN
Certification: SGS ISO
Model Number: 3mm 6mm 8mm 24mm
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability: 10 Tons per Month

Detail Information

Product Name: 316 Stainless Steel Ball Steel Ball Matrial: 304/316/316L/420C/440C
Standard: AISI, ASTM, DIN, EN, GB, JIS Hardness: HRC22
Application: Bearing,valve,switch,automobile Industry Feature: Strong Rust Resistance
High Light:

AISI Grinding Stainless Steel Ball

,

G100 Stainless Steel Ball

,

HRC22 round steel balls

Product Description

Solid ISO9001SGS G100 AISI 304 316 Grinding Stainless Steel Ball For Bearings 3mm 6mm 8mm 24mm​




Grade : G100-G500

Hardness: ≤HRC21

Magnetic:Austenitic steel, non-magnetic

Features: strong rust resistance, good corrosion resistance.

Applications:Household appliances such as valves, perfume bottles,

nail polish, baby bottles, auto parts, air conditioners, etc.

Solid ISO9001SGS G100 AISI 304 316 Grinding Stainless Steel Ball For Bearings 3mm 6mm 8mm 24mm 0



Material
Stainless steel 304 316 316L
Size
0.5MM-300MM Solid ball
Grade
G200
Tolerance: +/-0.005mm
Weight
28.17g /piece
MOQ
1pc
Package
plastic bag+carton box

Specification of stainless steel balls





Material
Density
Hardness
Tensile Strength
Magnetic

304
7.93 g/cm³
10~25 HRC
80,000~180,000 psi
Non-magnetic

316
7.98 g/cm³
10~25 HRC
80,000~120,000 psi
Non-magnetic

201
7.85 g/cm³
10~25 HRC
53,000 psi
Non-magnetic

420
7.75 g/cm³
48~55 HRC
95,000~250,000 psi
Magnetic

440
7.70 g/cm³
56~65 HRC
275,000~285,000 psi
Magnetic






Chymic component of 304 stainless steel balls
C
0.08% max.
Si
1.00% max.
Mn
2.00% max.
P
0.045% max.
S
0.030% max.
Cr
17.00 to 19.00%
Ni
8.00 -- 10.00%



Application Of Steel Balls



Solid ISO9001SGS G100 AISI 304 316 Grinding Stainless Steel Ball For Bearings 3mm 6mm 8mm 24mm 1


Special bearings, pumps and valves, aerosol and dispenser sprayers. Utilised in the foodstuff, paper, chemical, rubber,



military, textile industry. Applications in photographic devices, medical instruments, quick couplings, recirculating balls,



ink cartridges, jewels.




Company Information





Jinnai Stainless Steel Ball Manufacture Co., Ltd is one of famous and professional stainless steel ball factory from china .
With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and

our products got SGS,RHOS Certificates .
We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430).

also produce chrome steel ball (AISI52100,100CR6,GCR15),

carbon steel ball(1015,1010,1045,1085),

copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball

and other kinds of material ball.
We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm.
Welcome to visit our factory and looking forwarder to cooperate with you !


Solid ISO9001SGS G100 AISI 304 316 Grinding Stainless Steel Ball For Bearings 3mm 6mm 8mm 24mm 2
