Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | JN |
Certification: | ISO |
Model Number: | 50mm 2 inch |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500kg |
Price: | Negotiable |
Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
Delivery Time: | 7-15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
Supply Ability: | 500pcs per day |
Detail Information |
|||
Product Name: | Stainless Steel Hemisphere | Material Grade: | 304 201 |
---|---|---|---|
Surface: | Highly Polished | Thickness: | 0.5MM 1MM 1.5MM 2MM |
Usage: | Decoration | OES: | YES |
High Light: | hollow half ball,stainless steel sphere hollow |
Product Description

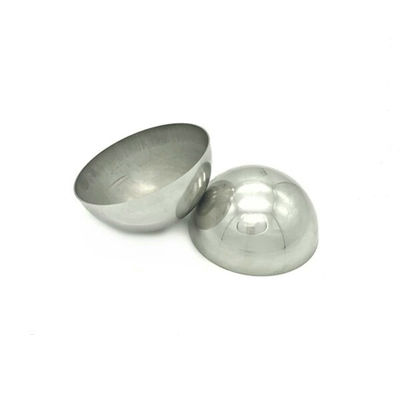

50mm Hollow Stainless Steel Hemisphere Half Sphere 0.5mm Thickness 2 Inch
The surface is subjected to multiple polishing procedures, which are round and smooth,
ensuring that the surface is bright as a mirror, which highlights the natural color of stainless steel and is not easy to rust.
All stainless steel, user-friendly design, smooth and bright, high temperature resistance, easy to clean, durable
Thickness is with half sphere diameter,thinner wall for small hollow half sphere,
thicker wall for bigger hollow half sphere,meanwhile the thicker wall,the more expensive price of hollow half sphere.
To choose the best suitable wall to the hollow half sphere,it's up to the real applications and materials
Mechanical Properties
201 | 304 | |
Density g/cm3 |
7.85 | 7.95 |
Hardness HRC |
25 - 39 | 10 - 39 |
Tensile Strength PSI×103 |
100 - 180 | 72 - 188 |
Young's Modulus GPa |
200 | 200 |
Chemical Composition
201 | 304 | |
%C | 0.150 Max | 0.080 Max |
%Si | 1.00 Max | 0.75 Max |
%Mn | 5.50 - 7.50 | 2.00 Max |
%P | 0.060 Max | 0.045 Max |
%S | 0.030 Max | 0.030 Max |
%Cr | 16.00 - 18.00 | 18.00 - 20.00 |
%Ni | 3.50 - 5.50 | 8.00 - 10.50 |
%N | 0.250 Max | 0.100 Max |
%Mo | - | - |
The hollow stainless steel ball we can produce is widely used in craftwork, valve, architecture.
Our metal spheres and hemispheres are fabricated in various thickness and material types for
diverse uses including duplex stainless steel pressure vessels,pharmaceutical tanks ,vacuum vessel,
manure spreader tanks,plastic moulds ,cement silo ends,marine buoys ,dome bottom silos and air receivers .
