Name: AISI316/316L Round Steel Balls For Medical Instruments 2.381MM 3/32 Corrosion Resistance
Brand: JN
SKU: 2.381MM 3/32

Detail Information
Product Description

Detail Information
Material:	AISI316/316L	Product Name:	Stainless Steel Ball
Feature:	Corrosion Resistance	Standard:	AISI ,DIN,ASTM
Application:	Medical Instruments, Quick Couplings	Grade:	G100 G200 G500
High Light:	stainless steel round balls , round steel balls

Product Description

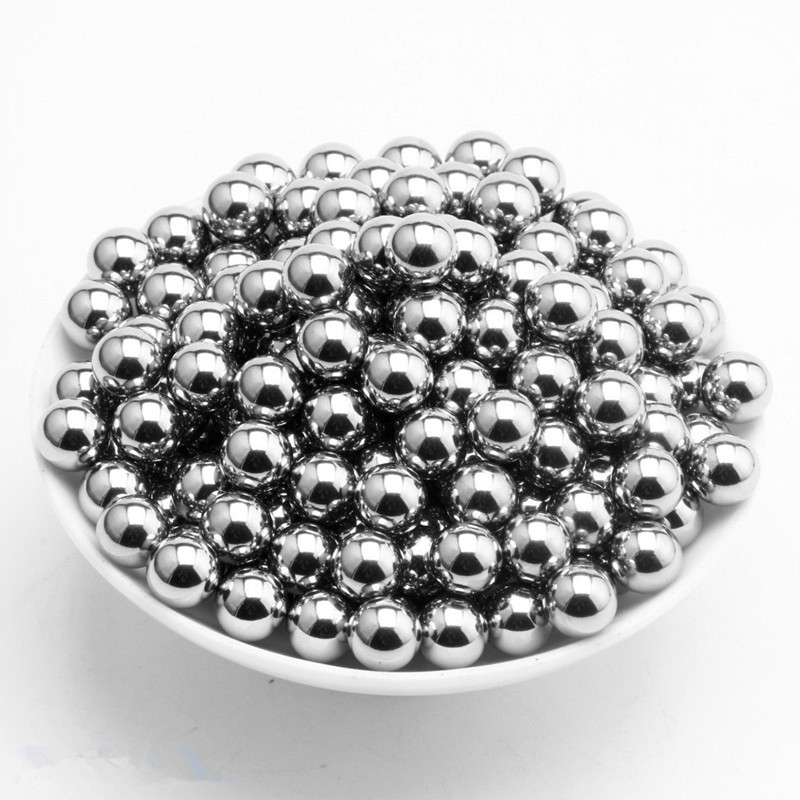

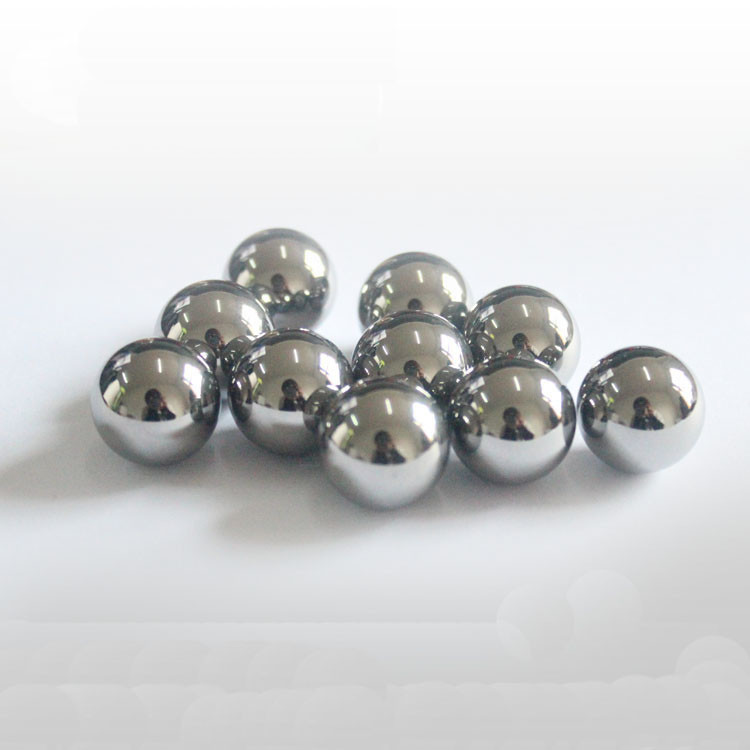

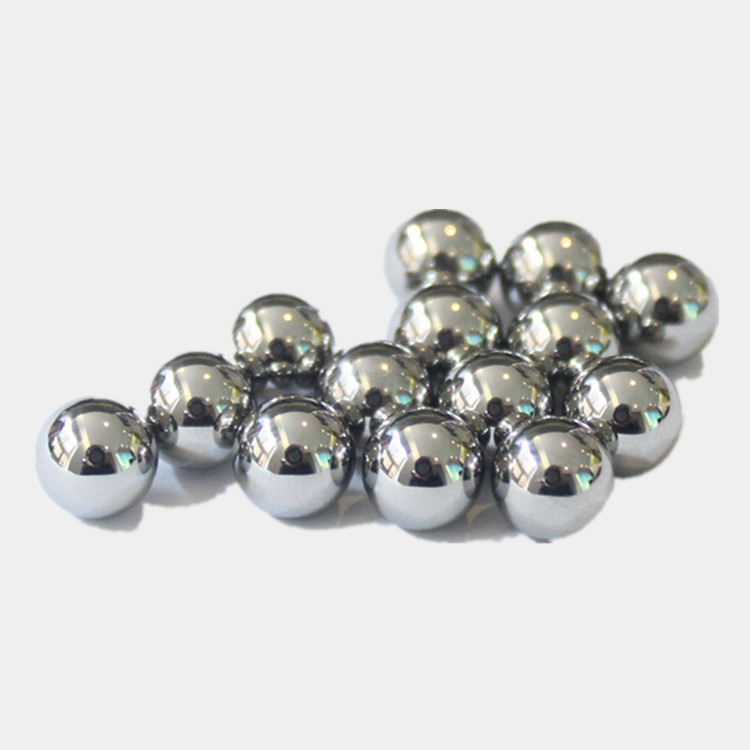

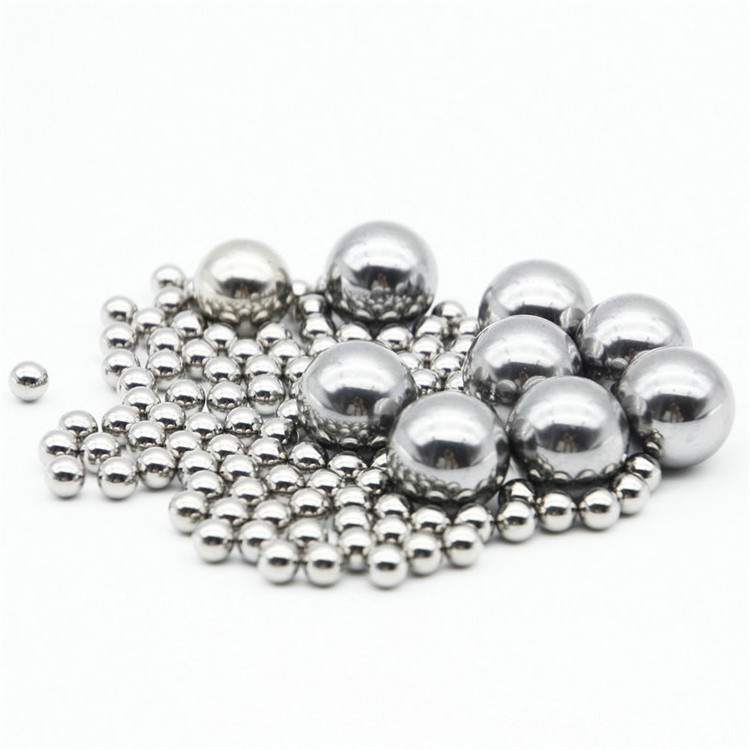

AISI316/316L Stainless Steel Ball For Medical Instruments 2.381MM 3/32

Austenitic stainless steel balls with higher corrosion resistance than AISI 304 balls.

They show good toughness. AISI 316L has a lower carbon content (maximum 0,030%).

Balls are provided in the passivated condition.

Applications

Special bearings, pumps and valves, aerosol and dispenser sprayers.

Utilised in the foodstuff, paper, chemical, rubber, military, textile industry.

Applications in photographic devices, medical instruments, quick couplings,

recirculating balls, ink cartridges, jewels.

Chemical composition

Type	%C	%Si	%Mn	%P	%S	%Cr	%Ni	%Mo
316	0.080 max	1.00 max	2.00 max	0.045 max	0.030 max	16.00-18.00	10.00-14.00	2.00-3.00
316L	0.030 max	1.00 max	2.00 max	0.045 max	0.030 max	16.00-18.00	10.10-14.00	2.00-3.00

International standards

ITA	USA	GER	FRA	UK	RUS	CHN	JAP
X5CrNiMo1712-2	316	1.4401	Z6CND17.11	316S16	08KH16N11M3	0Cr17Ni12Mo2	SUS316
X2CrNiMo1712-2	316L	1.4404	Z3CND17-11-02	316S11	03KH17N14M2	0Cr19Ni12Mo2	SUS316L

Physical / mechanical / thermal / electric / magnetic properties

Property	Symbol	U.o.M.	Type	Notes	Values
Density	δ	[g/cm3]	Physical	Room temp.	7.95
Young's modulus	E	[GPa]	Mechanical	-	200
Specific heat	c	[J/kg-K]	Thermal	Room temp.	500
Coefficient of linear thermal expansion	α	[10^-6/ºC]	Thermal	(ΔT=0-100°C)	17
Thermal conductivity	λ	[W/(m·K)]	Thermal	Room temp.	15.0
Electric resistivity	ρ	[Ωm10^-9]	Electric	-	730
Relative magnetic permeability	µ	-	Magnetic	Paramagnetic	1.020*

Technical data

Property	Type	U.o.M.	Values	U.o.M.	Values
Hardness	Mechanical	[HRC]	20 - 39 (1)*	[HV]	100 - 250 (2)*
Ultimate tensile strength	Mechanical	[MPa]	550 - 1250	[psix10^3]	80 - 180
Service temperature	Thermal	[ºC]	-196 / 600	[ºF]	-320.8 / 1112

Range

Diameters (min/max)	U.o.M.	Diameters (min/max)	U.o.M.	Precision grades (ISO 3290-1 / DIN 5401 / AFBMA)**
0.300 - 300.000	[mm]	1/64 - 12	["]	G100-200-300-500-600-700-1000

Corrosion Resistance

Very good corrosion resistance with respect to organic substances, good resistance to several strong acids (acetic, phosphoric, sulphuric acid) and on sea water. They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and to stress corrosion when temperature exceeds 60°C. They do not resist in contact with hydrochloric and hydrofluoric acids, aqua regia, iron and magnesium chlorides.

Notes

Property	Description
Hardness*	Balls can be supplied in the (1) COLD WORKED (HRC 20-39, standard product) or (2) ANNEALED (HV 100-250, on demand) conditions.
Magnetism	Eventual magnetism of AISI 316 balls and in general of all austenitc stainless steels strictly depends by the manufacturing process, specific inquiries for not magnetic balls should priorly reported.
Precision grade**	On specifical request and for big quantities, we can supply G10 and G16 precision grade balls. Diameters from 3.000 mm to 1/2".
Precision Grade**	On specifical request we can supply G20-24-25-28-40-48-50-60-80 precision grade balls.

Tag:

Product Details:
Place of Origin:	China
Brand Name:	JN
Certification:	SGS ISO
Model Number:	2.381MM 3/32
Payment & Shipping Terms:
Minimum Order Quantity:	500kg
Price:	Negotiable
Packaging Details:	Ploy bag+25kg carton box+1000kg wooden box
Delivery Time:	7-15 days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability:	100 Tons per Month
