Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | JN |
Certification: | SGS ISO |
Model Number: | 7/32 , 5.556MM |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500kg |
Price: | Negotiable |
Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
Supply Ability: | 10 Tons per Month |
Detail Information |
|||
Product Name: | AISI 304 Stainless Steel Balls | Grade: | G100 |
---|---|---|---|
Application: | Perfume Bottle , Pumps | MOQ: | 100PCS |
Other Standard: | 0Cr19Ni9 | HS Code: | 8482910 |
High Light: | round steel balls,solid metal ball |
Product Description

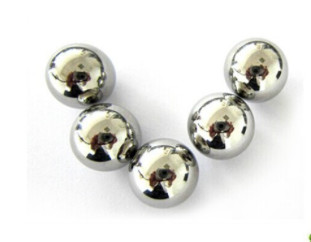

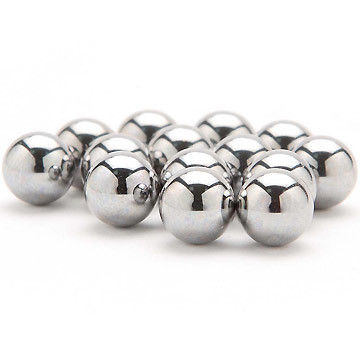

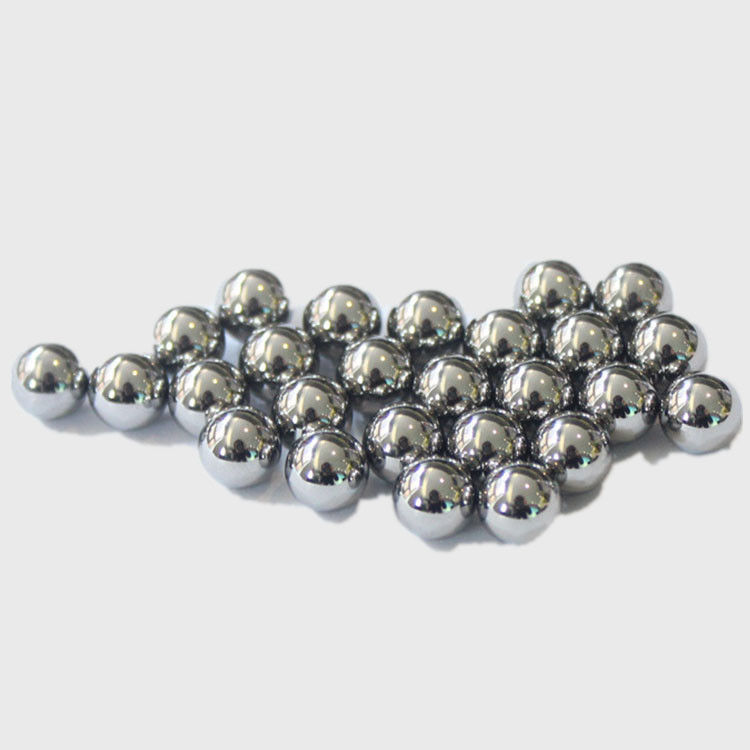

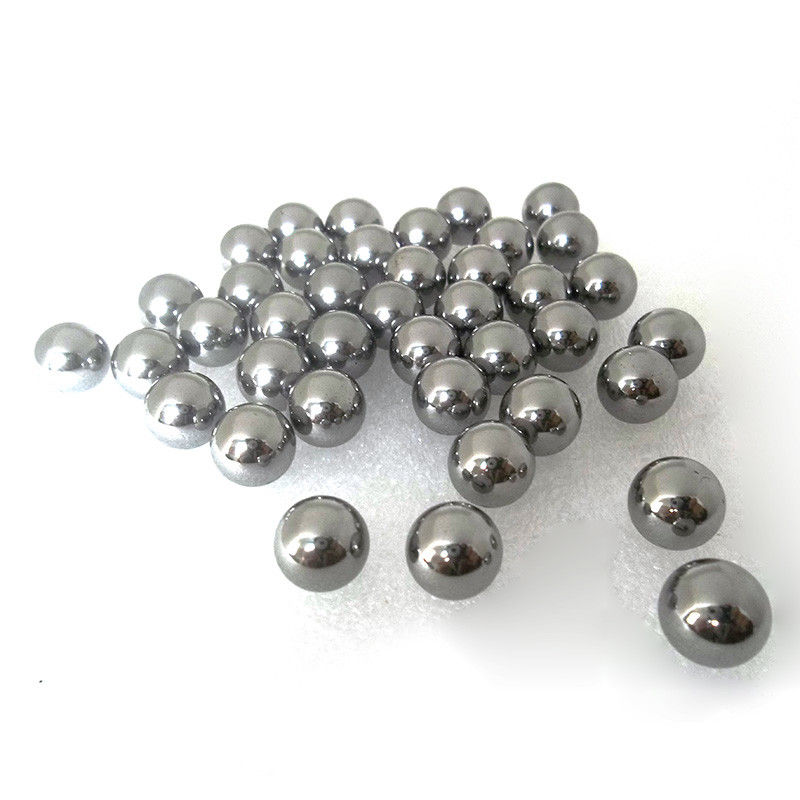

AISI 304 Stainless Steel Balls For Agricultural Backpack Sprayers 7/32 , 5.556MM
About Product:
Mechancial Properties |
Tensile Strength | 100,000 - 180,000 psi | |||||
Yield Strength | 50,000 - 150,000 psi | ||||||
Density | 0.286 Ibs/cu in | ||||||
Physical Property |
Corrosion resistance | Good | |||||
Magnetic | Slighty ( Demag process avaibalbe ) | ||||||
Size Range | 0.3mm-60mm | ||||||
Hardness | HRC ≤ 26 | ||||||
Grade | G100 - G1000 | ||||||
Application | Type 304 balls are used in aerosol and dispenser valves , medical applications , animal feeders , trigger sprayers , finger pumps and food processing . | ||||||
Type
|
%C
|
%Si
|
%Mn
|
%P
|
%S
|
%Cr
|
%Ni
|
%N
|
---|---|---|---|---|---|---|---|---|
302
|
0.150 max
|
1.00 max
|
2.00 max
|
0.045 max
|
0.030 max
|
17.00-19.00
|
8.00-10.00
|
0.100 max
|
304
|
0.080 max
|
0.75 max
|
2.00 max
|
0.045 max
|
0.030 max
|
18.00-20.00
|
8.00-10.50
|
0.100 max
|
304L
|
0.030 max
|
0.75 max
|
2.00 max
|
0.045 max
|
0.030 max
|
18.00-20.00
|
8.00-10.50
|
0.100 max
|
Property
|
Type
|
U.o.M.
|
Values
|
U.o.M.
|
Values
|
---|---|---|---|---|---|
Hardness
|
Mechanical
|
[HRC]
|
20 - 39 (1)*
|
[HV]
|
100 - 250 (2)*
|
Ultimate tensile strength
|
Mechanical
|
[MPa]
|
500 - 1300
|
[psix10^3]
|
72 - 188
|
Service temperature
|
Thermal
|
[ºC]
|
-196 / 700
|
[ºF]
|
-320.8 / 1697
|
Hardness*
|
Balls can be supplied in the
(1) COLD WORKED (HRC 20-39, standard product)
(2) ANNEALED (HV 100-250, on demand) conditions.
|
Magnetism
|
Eventual magnetism of AISI 316 balls and in general of all austenitc stainless steels strictly depends by the manufacturing process, specific inquiries for not magnetic balls should priorly reported.
|
Precision Grade**
|
On specifical request and for big quantities, we can supply G10 and G16 precision grade balls. Diameters from 3.000 mm to 1/2".
|
Precision Grade**
|
On specifical request we can supply G20-24-25-28-40-48-50-60-80 precision grade balls.
|
ITA
|
USA
|
GER
|
FRA
|
UK
|
RUS
|
CHN
|
JAP
|
---|---|---|---|---|---|---|---|
X10CrNi18-8
|
302
|
1.4310
|
Z11CN18-08
|
301S21
|
12KH18N9
|
1Cr18Ni9
|
SUS301
|
X5CrNi18-10
|
304
|
1.4301
|
Z7CN18-09
|
304S15
|
08KH18N10
|
0Cr18Ni9
|
SUS304
|
X2CrNi18-9
|
304L
|
1.4307
|
Z3CN18-10
|
304S11
|
04KH18N10
|
00Cr19Ni10
|
SUS304L
|
Corrosion Resistance
304: Very good corrosion resistance with respect to organic substances, oxidating solutions, foodstuff, sterilizing solutions.
Good resistance with respect to atmospheric corrosion and dyes.
They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and to stress corrosion
when temperature exceeds 60°C. They do not resist to sulfuric acid solutions.
AISI 302 shows slightly best corrosion resistance with respect to AISI 304/304L stainless steels.
