Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | JN |
Certification: | SGS ISO |
Model Number: | 3/8 1/2 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500kg |
Price: | Negotiable |
Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
Supply Ability: | 100 Tons per Month |
Detail Information |
|||
Material: | 420C , 1.4034 | Product Name: | Magnetic Steel Ball |
---|---|---|---|
Feature: | Corrosion Resistance | Standard: | AISI ,DIN,ASTM |
Application: | Phamaceutical, Bearing, Cosmetic Nail Polish | Hardness: | HRC50-HRC55 |
Highlight: | stainless steel round balls,solid metal ball |
Product Description

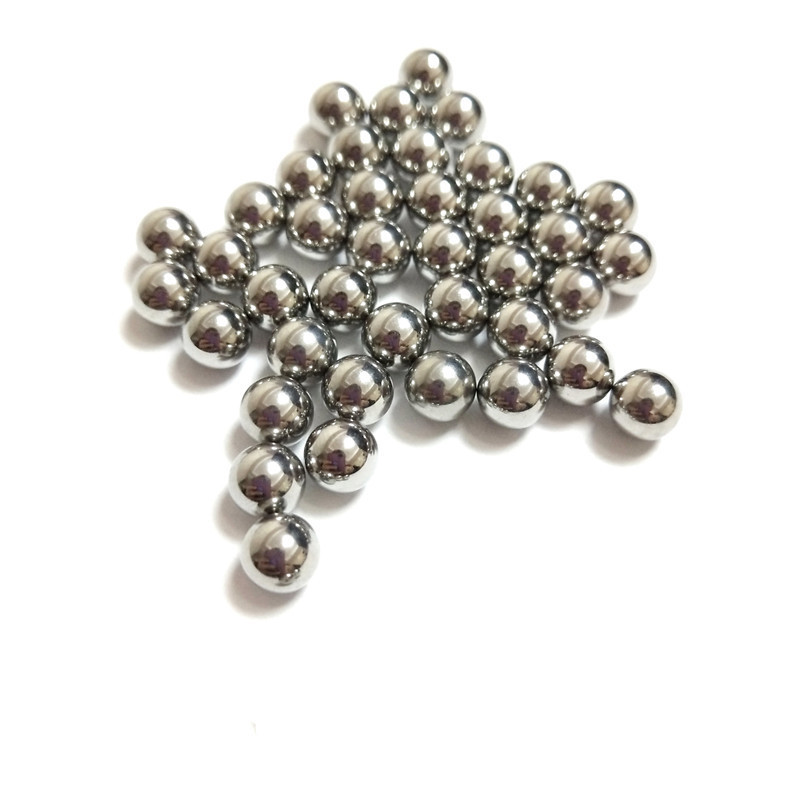

420 Stainless Steel Ball HRC50-55 Magnetic Steel Balls 3/8 Inch 1/2 Inch G60
Applications
Special bearings, anti-friction bearings, special pumps, recirculating balls, lighters, pens, automotive seatbelts & components.
Chemical composition
%C | %Si | %Mn | %P | %S | %Cr |
---|---|---|---|---|---|
0.43-0.50 | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 12.50-14.50 |
ITA | USA | GER | FRA | UK | RUS | CHN | JAP |
---|---|---|---|---|---|---|---|
X46Cr13 | 420C | 1.4034 | Z 34 C 14 | - | 40 Kh 13 | 4Cr13 | - |
Property | Symbol | U.o.M. | Type | Notes | Values |
---|---|---|---|---|---|
Density | δ | [g/cm3] | Physical | Room temp. | 7.75 |
Young's modulus | E | [GPa] | Mechanical | - | 205 |
Specific heat | c | [J/kg-K] | Thermal | Room temp. | 450 |
Coefficient of linear thermal expansion | α | [10^-6/ºC] | Thermal | (ΔT=0-100°C) | 10.4 |
Thermal conductivity | λ | [W/(m·K)] | Thermal | Room temp. | 27.6 |
Electric resistivity | ρ | [Ω*m*10^-9] | Electric | - | 720 |
Relative magnetic permeability | µ | - | Magnetic | Not hardened | > 600 |
Diameters (min/max) | U.o.M. | Diameters (min/max) | U.o.M. | Precision grades (ISO 3290-1 / DIN 5401 / AFBMA) |
---|---|---|---|---|
0.300 - 300.000 | [mm] | 1/64 - 12 | ["] | See section International Standards: ISO 3290-1 / DIN 5401 / AFBMA |
Corrosion Resistance |
---|
Good corrosion resistance in industrial atmosphere, freshwater, steam, alcool, ammonium, several oilfield products and organic compounds, dairy products, mild acid environments. Fairish in foodstuff and alkaline solutions. Fair in salt atmosphere. It does not resist in contact with sea water and strong acids (even if diluted). |
