Product Details:
|
|
Place of Origin: | Shandong |
---|---|
Brand Name: | JN |
Certification: | SGS ISO |
Model Number: | 0.5mm-50.8mm |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500kg |
Price: | Negotiable |
Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
Supply Ability: | 10 Tons per Month |
Detail Information |
|||
Product Name: | Steel Balls | Grade: | G10,G20,G28,G60,G100 G200 G500 G1000 |
---|---|---|---|
Feature: | Strong Rust Resistance | Surface: | Mirror Polished |
Material: | Stainless ,chrome Bearing Ball, Carbon Steel Ball | Application: | Bearing,phamaceutical,bearing Cosmetic Nail Polish |
High Light: | stainless steel round balls,round steel balls |
Product Description

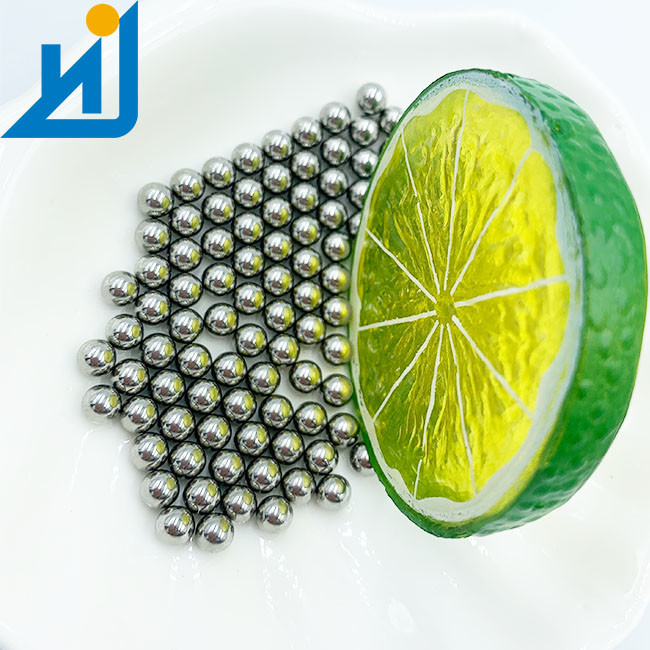

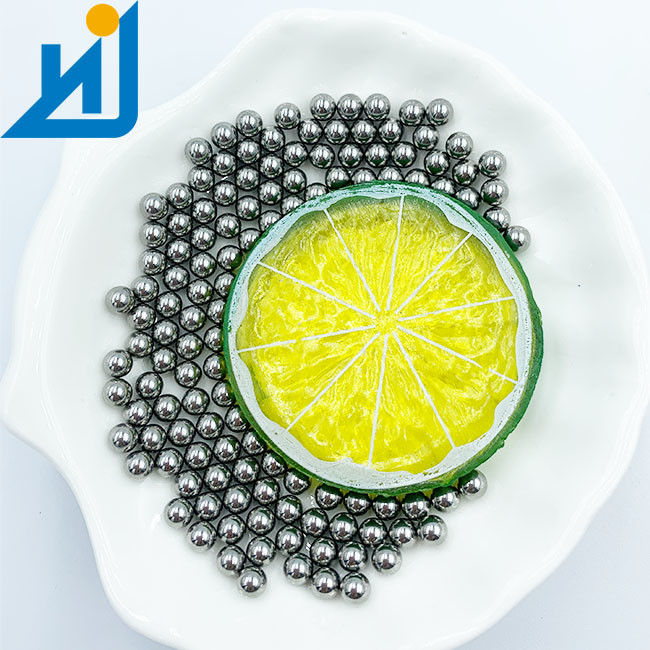

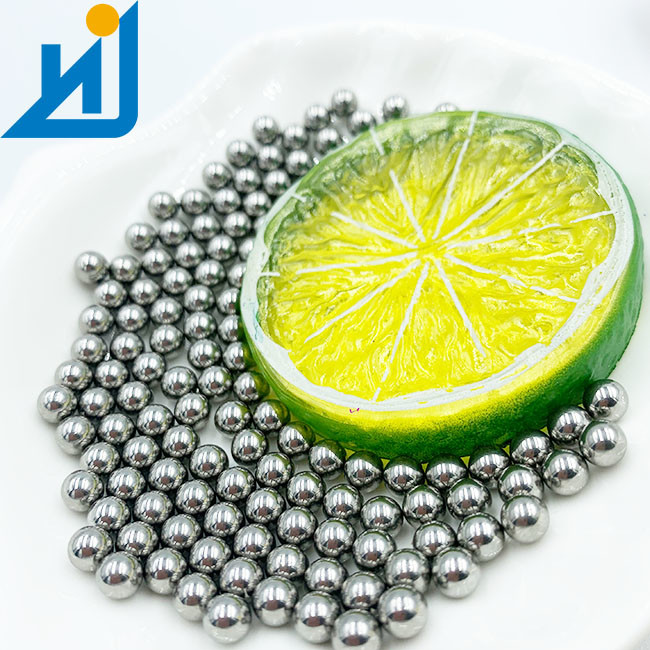

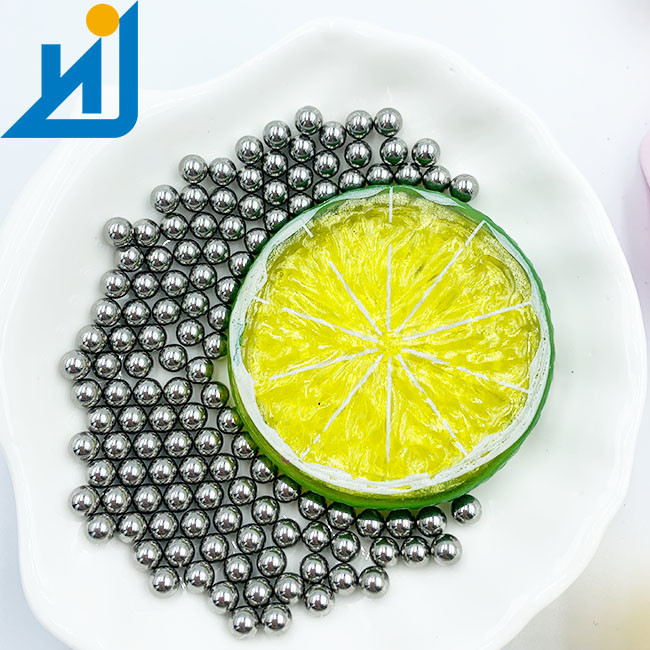

China Factory 304 ss420 ss440 Steel Balls Stainless Steel Bearing Carbon Steel Ball 0.5mm-50.8mm
Stainless Steel balls are used in valve pumps, nail polish and spray paint bottles for agitation,
sprinkling systems, appliance components, casters, drawer slides, locking mechanisms,
semi-precision bearings and a host of other industrial and consumer products.
Jinnai Steel Ball Company offers a wide range of stainless steel materials such as 201, 302, 304, 316, 316L,
420, 430 and 440C.
Other oem service such as drilling, threading, polishing, plating, cutting,welding and so on both available upon request.
1-Basic Information
Product Name
|
Stainless Steel Ball
|
Material
|
304 440 420 201 stainless steel ball
|
CERTIFICATION
|
ISO 9100:2008 / ISO/TS:16949
|
Standard
|
AISI, ASTM, DIN, JIS
|
Grade
|
G10-G1000
|
Size
|
1.0mm-60mm
|
Applichation
|
Balls & roller bearings, Linear monition, Automotive components, Balls lead screws, Grinding media, Gardening and household sprayers, Perfume miniature pumps, etc.
|
Hardness
|
HRC20-25
|
2-Chemical Composition of all stainless steel ball
Material | C | Si | Cr | Mn | P | S | Ni |
201 | 0.15% Max | 1% Max | 16%~18% | 5.5% Max | 0.060% Max | 0.03% Max | 3.5%5.5% |
304 | 0.08% Max | 1% Max | 18%~20% | 2% Max | 0.045% Max | 0.03% Max | 8%~10.5% |
316 | 0.08% Max | 1% Max | 16%~18% | 2% Max | 0.045% Max | 0.03% Max | 10%~14% |
420 | 0.15 % Max | 1% Max | 12%~14% | 1% Max | 0.040% Max | 0.03% Max | - |
430 | 0.12% Max | 1% Max | 16%~18% | 1% Max | 0.040% Max | 0.03% Max | - |
440 | 0.95%~1.2% | 1% Max | 16%~18% | 1% Max | 0.40% Max | 0.03% Max | - |
3-Mechanical Properties
Material | Density | Hardness | Tensile Strength | Magnetic |
201 | 7.85 g/cm³ | 10~25 HRC | 53,000 psi | Non-magnetic |
304 | 7.93 g/cm³ | 10~25 HRC | 80,000~180,000 psi | Non-magnetic |
316 | 7.98 g/cm³ | 10~25 HRC | 80,000~120,000 psi | Non-magnetic |
420 | 7.75 g/cm³ | 48~55 HRC | 95,000~250,000 psi | Magnetic |
430 | 7.73 g/cm³ | 52~60 HRC | 107,000~140,000 psi | Magnetic |
440 | 7.70 g/cm³ | 56~65 HRC | 275,000~285,000 psi |
International Standards
201 | 304 | 316 | 420C | 440C | |
USA | AISI201 | AISI304 | AISI316 | AISI420C | AISI440C |
JAP | SUS201 | SUS304 | SUS316 | - | SUS440C |
UK | 201S01 | 304S15 | 316S16 | - | - |
CHN | 1Cr17Mn6Ni5N | 0Cr18Ni9 | 0Cr17Ni12Mo2 | 4Cr13 | 9Cr18Mo |
RUS | 14Ch18N4G4L | 08KH18N10 | 08KH16N11M3 | 40Kh13 | 95X18 |
ITA | - | X5CrNi18-10 | X5CrNiMo1712 | X46Cr13 | X105CrMo17 |
FRA | Z12CMN17-07Az | Z7CN18-09 | Z6CND17.11 | Z34C14 | Z100CD17 |
GER | 1.4372 | 1.4301 | 1.4401 | 1.4034 | 1.4125 |
Feature
Austenitic stainless steel balls with higher corrosion resistance than AISI 304 balls. They show good toughness.
AISI 316L has a lower carbon content (maximum 0,030%). Balls are provided in the passivated condition.
Corrosion Resistance
Very good corrosion resistance with respect to organic substances, good resistance to several strong acids
(acetic, phosphoric, sulphuric acid) and on sea water.
They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and
to stress corrosion when temperature exceeds 60°C.
They do not resist in contact with hydrochloric and hydrofluoric acids, aqua regia, iron and magnesium chlorides.
They are subjected to pitting corrosion in sea water environments. Poor corrosion resistance in acid environments.
Application Of Steel Balls
Special bearings, pumps and valves, aerosol and dispenser sprayers. Utilised in the foodstuff, paper, chemical, rubber,
military, textile industry. Applications in photographic devices, medical instruments, quick couplings, recirculating balls,
ink cartridges, jewels.
Company Information
Jinnai Stainless Steel Ball Manufacture Co., Ltd is one of famous and professional stainless steel ball factory from china .
With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and
our products got SGS,RHOS Certificates .
We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430).
also produce chrome steel ball (AISI52100,100CR6,GCR15),
carbon steel ball(1015,1010,1045,1085),
copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball
and other kinds of material ball.
We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm.
Welcome to visit our factory and looking forwarder to cooperate with you !
