Product Details:
|
|
| Place of Origin: | Shandong |
|---|---|
| Brand Name: | JN |
| Certification: | SGS ISO |
| Model Number: | 1/4 Inch 6.35MM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500kg |
| Price: | Negotiable |
| Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
| Supply Ability: | 10 Tons per Month |
|
Detail Information |
|||
| Product Name: | 420 Stainless Steel Ball | Grade: | G100 |
|---|---|---|---|
| Feature: | Anti-rust, With Magnetic | Surface: | Mirror Polished |
| Material: | 420 Steel Beads | Application: | Bearing,phamaceutical,bearing Cosmetic Nail Polish |
| High Light: | stainless steel round balls,round steel balls |
||
Product Description

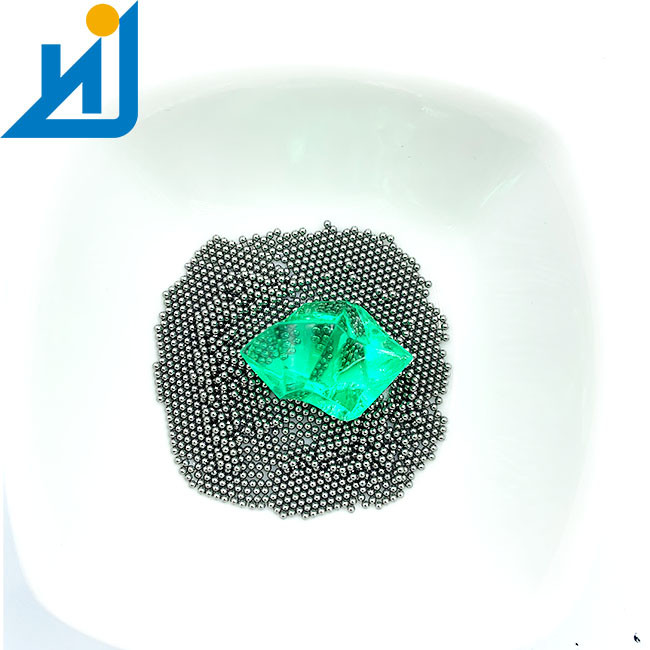

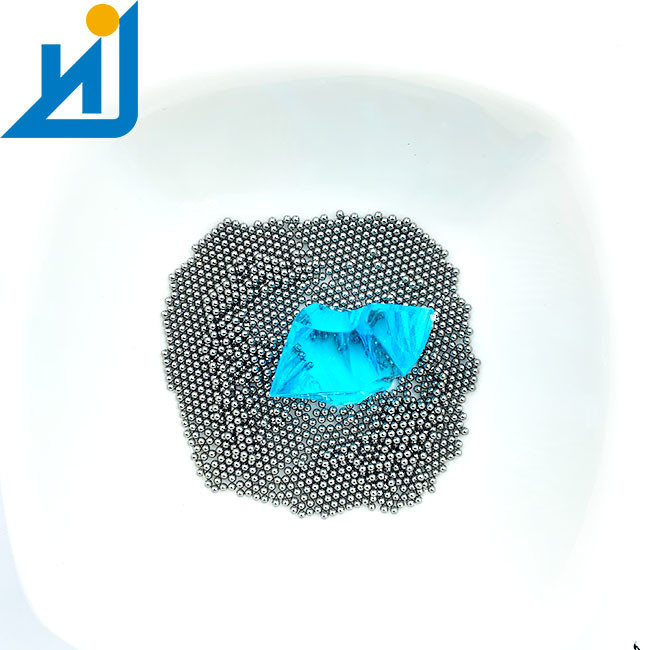

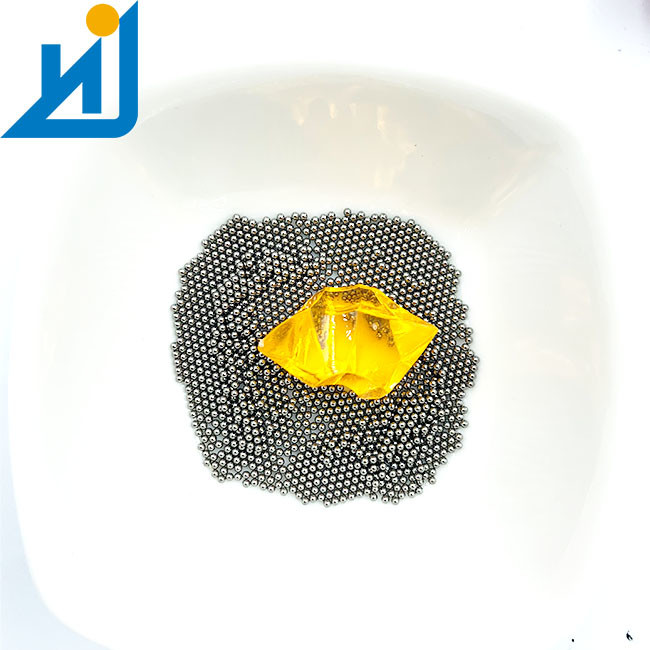

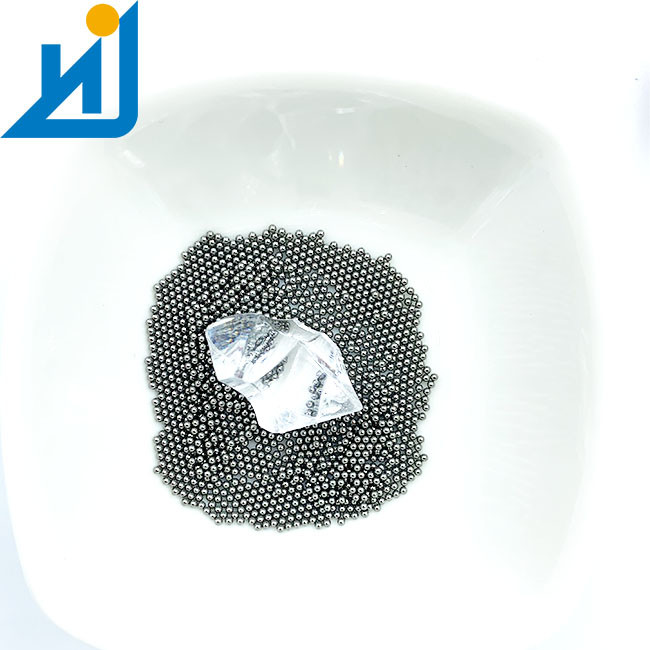

Mix Nail Polish Steel Ball Stainless Steel Ball G100 G500 G1000 Steel Balls of SS420
Product Description
Applications
Special bearings, anti-friction bearings, special pumps, recirculating balls, lighters, pens, automotive seatbelts & components.
Chemical composition
| %C | %Si | %Mn | %P | %S | %Cr |
|---|---|---|---|---|---|
| 0.43-0.50 | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 12.50-14.50 |
1-Basic Information
|
Product Name
|
200 300 400 Series Micro Size 1mm 1.2mm 0.5mm Stainless Steel Ball for subminiature
|
|
Material
|
stainless steel ball
|
|
CERTIFICATION
|
ISO 9100:2008 / ISO/TS:16949
|
|
Standard
|
AISI, ASTM, DIN, JIS
|
|
Grade
|
G10-G1000
|
|
Size
|
0.3mm-200mm
|
|
Applichation
|
Balls & roller bearings, Linear monition, Automotive components, Balls lead screws, Grinding media, Gardening and household sprayers, Perfume miniature pumps, etc.
|
|
Hardness
|
HRC20-25
|
2-Chemical Composition of all stainless steel ball
| Material | C | Si | Cr | Mn | P | S | Ni |
| 201 | 0.15% Max | 1% Max | 16%~18% | 5.5% Max | 0.060% Max | 0.03% Max | 3.5%5.5% |
| 304 | 0.08% Max | 1% Max | 18%~20% | 2% Max | 0.045% Max | 0.03% Max | 8%~10.5% |
| 316 | 0.08% Max | 1% Max | 16%~18% | 2% Max | 0.045% Max | 0.03% Max | 10%~14% |
| 420 | 0.15 % Max | 1% Max | 12%~14% | 1% Max | 0.040% Max | 0.03% Max | - |
| 430 | 0.12% Max | 1% Max | 16%~18% | 1% Max | 0.040% Max | 0.03% Max | - |
| 440 | 0.95%~1.2% | 1% Max | 16%~18% | 1% Max | 0.40% Max | 0.03% Max | - |
3-Mechanical Properties
| Material | Density | Hardness | Tensile Strength | Magnetic |
| 201 | 7.85 g/cm³ | 10~25 HRC | 53,000 psi | Non-magnetic |
| 304 | 7.93 g/cm³ | 10~25 HRC | 80,000~180,000 psi | Non-magnetic |
| 316 | 7.98 g/cm³ | 10~25 HRC | 80,000~120,000 psi | Non-magnetic |
| 420 | 7.75 g/cm³ | 48~55 HRC | 95,000~250,000 psi | Magnetic |
| 430 | 7.73 g/cm³ | 52~60 HRC | 107,000~140,000 psi | Magnetic |
| 440 | 7.70 g/cm³ | 56~65 HRC | 275,000~285,000 psi |
International Standards
| 201 | 304 | 316 | 420C | 440C | |
| USA | AISI201 | AISI304 | AISI316 | AISI420C | AISI440C |
| JAP | SUS201 | SUS304 | SUS316 | - | SUS440C |
| UK | 201S01 | 304S15 | 316S16 | - | - |
| CHN | 1Cr17Mn6Ni5N | 0Cr18Ni9 | 0Cr17Ni12Mo2 | 4Cr13 | 9Cr18Mo |
| RUS | 14Ch18N4G4L | 08KH18N10 | 08KH16N11M3 | 40Kh13 | 95X18 |
| ITA | - | X5CrNi18-10 | X5CrNiMo1712 | X46Cr13 | X105CrMo17 |
| FRA | Z12CMN17-07Az | Z7CN18-09 | Z6CND17.11 | Z34C14 | Z100CD17 |
| GER | 1.4372 | 1.4301 | 1.4401 | 1.4034 | 1.4125 |
Company Information
Jinnai Stainless Steel Ball Manufacture Co., Ltd is one of famous and professional stainless steel ball factory from china .
With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and
our products got SGS,RHOS Certificates .
We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430).
also produce chrome steel ball (AISI52100,100CR6,GCR15),
carbon steel ball(1015,1010,1045,1085),
copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball
and other kinds of material ball.
We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm.
Welcome to visit our factory and looking forwarder to cooperate with you !
