Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | JN |
Certification: | SGS ISO |
Model Number: | 5/32" 3.969MM |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500kg |
Price: | Negotiable |
Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
Supply Ability: | 100 Tons per Month |
Detail Information |
|||
Material: | AISI316/316L | Product Name: | Stainless Steel Ball |
---|---|---|---|
Feature: | Corrosion Resistance | Standard: | AISI ,DIN,ASTM |
Application: | Medical Instruments, Quick Couplings | Hardness: | HRC25 |
High Light: | stainless steel round balls,solid metal ball |
Product Description

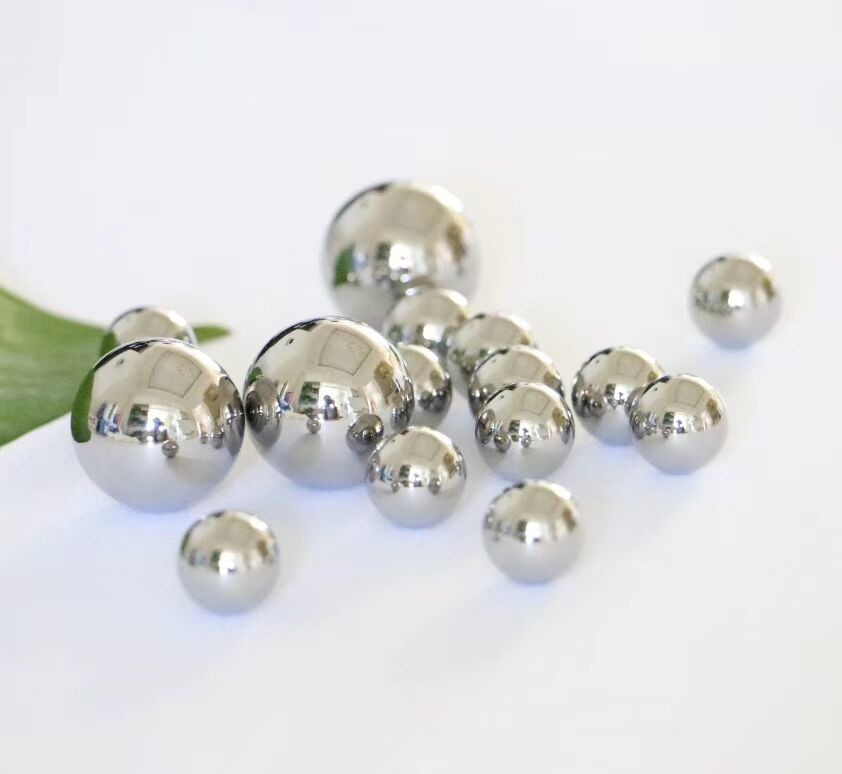

SS304 SS304L Unhardened Stainless Steel Ball For Perfume Miniature Pumps
Brief Introduction
Unhardened austenitc stainless steel balls, they display good mechanical characteristics,
toughness and corrosion resistance. AISI 304L provides lower carbon content,
AISI 302 better mechanical characteristics. Balls are provided in the passivated condition.
Applications
Special bearings and pumps, aerosol pumps, gardening and household sprayers,
perfume miniature pumps, seams, medical application valves, agricultural backpack sprayers.
They are used in foodstuff, aerospace and military industry.
Chemical composition
Type
|
%C
|
%Si
|
%Mn
|
%P
|
%S
|
%Cr
|
%Ni
|
%N
|
---|---|---|---|---|---|---|---|---|
302
|
0.150 max
|
1.00 max
|
2.00 max
|
0.045 max
|
0.030 max
|
17.00-19.00
|
8.00-10.00
|
0.100 max
|
304
|
0.080 max
|
0.75 max
|
2.00 max
|
0.045 max
|
0.030 max
|
18.00-20.00
|
8.00-10.50
|
0.100 max
|
304L
|
0.030 max
|
0.75 max
|
2.00 max
|
0.045 max
|
0.030 max
|
18.00-20.00
|
8.00-10.50
|
0.100 max
|
ITA
|
USA
|
GER
|
FRA
|
UK
|
RUS
|
CHN
|
JAP
|
---|---|---|---|---|---|---|---|
X10CrNi18-8
|
302
|
1.4310
|
Z11CN18-08
|
301S21
|
12KH18N9
|
1Cr18Ni9
|
SUS301
|
X5CrNi18-10
|
304
|
1.4301
|
Z7CN18-09
|
304S15
|
08KH18N10
|
0Cr18Ni9
|
SUS304
|
X2CrNi18-9
|
304L
|
1.4307
|
Z3CN18-10
|
304S11
|
04KH18N10
|
00Cr19Ni10
|
SUS304L
|
Property | Symbol | U.o.M. | Type | Notes | Values |
---|---|---|---|---|---|
Density | δ | [g/cm3] | Physical | Room temp. | 7.95 |
Young's modulus | E | [GPa] | Mechanical | - | 200 |
Specific heat | c | [J/kg-K] | Thermal | Room temp. | 500 |
Coefficient of linear thermal expansion | α | [10^-6/ºC] | Thermal | (ΔT=0-100°C) | 17.5 |
Thermal conductivity | λ | [W/(m·K)] | Thermal | Room temp. | 15.8 |
Electric resistivity | ρ | [Ω*m*10^-9] | Electric | - | 710 |
Relative magnetic permeability | µ | - | Magnetic | Paramagnetic | 1.025* |
Property | Type | U.o.M. | Values | U.o.M. | Values |
---|---|---|---|---|---|
Hardness | Mechanical | [HRC] | 20 - 39 (1)* | [HV] | 100 - 250 (2)* |
Ultimate tensile strength | Mechanical | [MPa] | 500 - 1300 | [psix10^3] | 72 - 188 |
Service temperature | Thermal | [ºC] | -196 / 700 | [ºF] | -320.8 / 1697 |
Diameters (min/max)
|
U.o.M.
|
Diameters (min/max)
|
U.o.M.
|
Precision grades (ISO 3290-1 / DIN 5401 / AFBMA)**
|
---|---|---|---|---|
0.300 - 300.000
|
[mm]
|
1/64 - 12
|
["]
|
G100-200-300-500-600-700-1000
|
Property | Description |
---|---|
Hardness* | Balls can be supplied in the (1) COLD WORKED (HRC 20-39, standard product) or (2) ANNEALED (HV 100-250, on demand) conditions. |
Magnetism | Eventual magnetism of AISI 316 balls and in general of all austenitc stainless steels strictly depends by the manufacturing process, specific inquiries for not magnetic balls should priorly reported. |
Precision Grade** | On specifical request and for big quantities, we can supply G10 and G16 precision grade balls. Diameters from 3.000 mm to 1/2". |
Precision Grade** | On specifical request we can supply G20-24-25-28-40-48-50-60-80 precision grade balls. |
