Product Details:
|
|
| Place of Origin: | ShanDong,China |
|---|---|
| Brand Name: | JN |
| Certification: | ISO SGS |
| Model Number: | 7/8 Inch 5/8 Inch |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500kg |
| Price: | Negotiable |
| Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 50 Tons Per Month |
|
Detail Information |
|||
| Product Name: | Stainless Ball Bearings | Material Type: | AISI440C SS440C SUS440C |
|---|---|---|---|
| Grade: | G1000 | Application: | Slide, Fuel, Pump, Fasteners |
| Surface: | High Polished | Standard: | AISI, ASTM, DIN, EN, GB, JIS |
| High Light: | stainless steel round balls,round steel balls |
||
Product Description

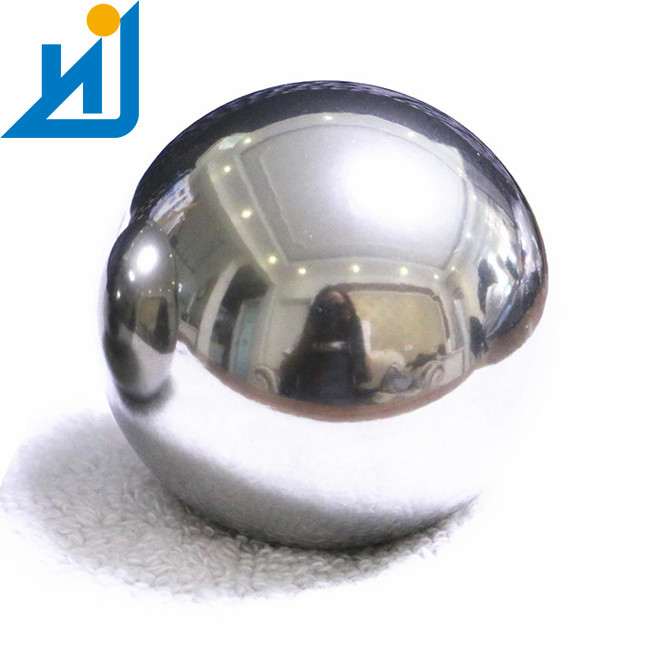

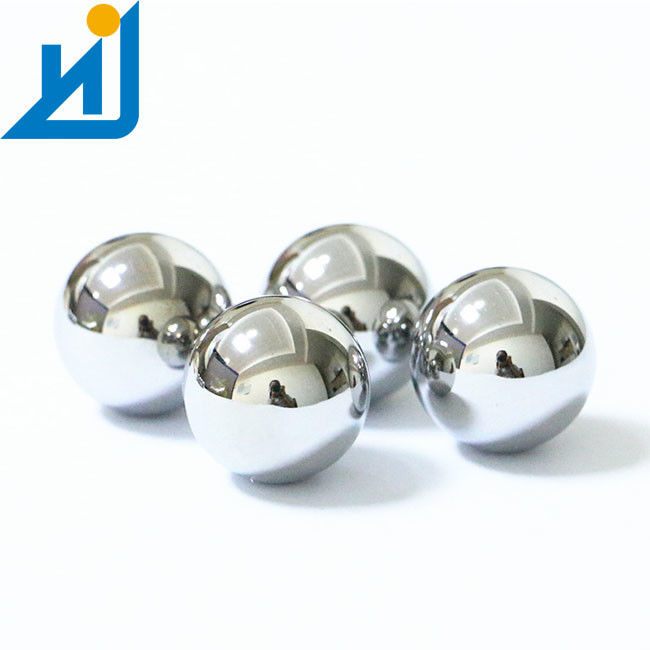

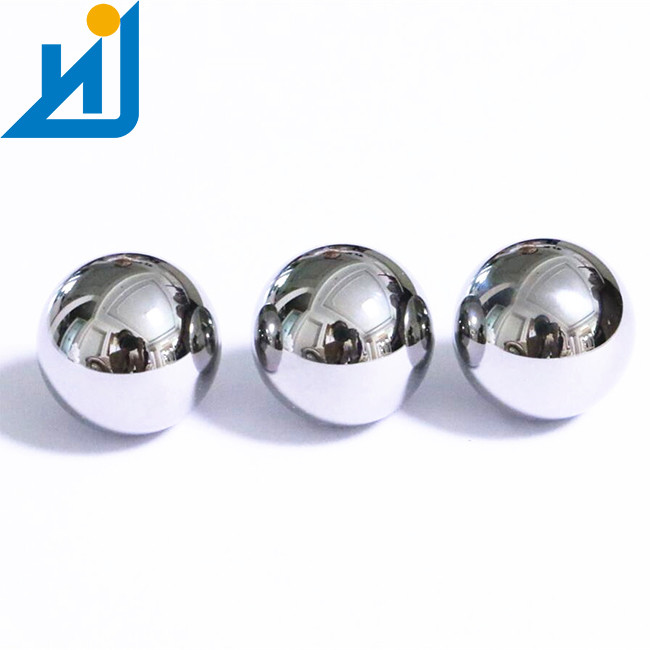

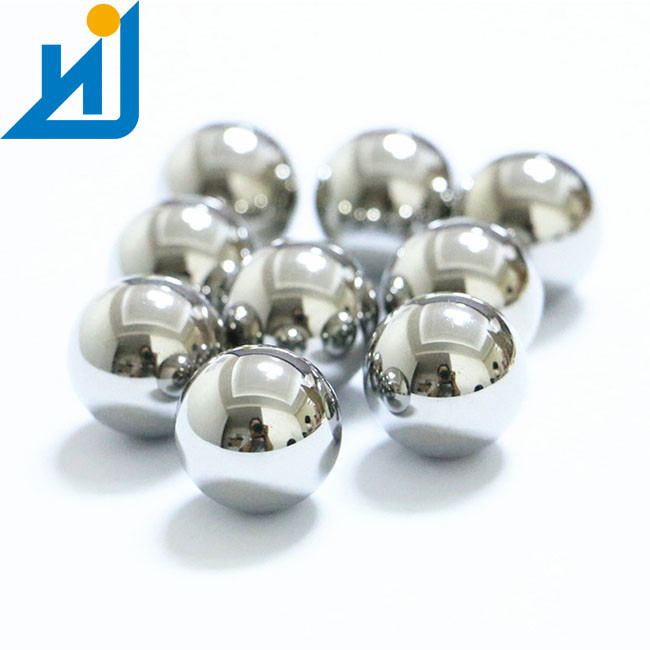

SUS440C Grinding Stainless Steel Balls G1000 Grade 7/8 Inch 5/8 Inch
440 Stainless Steel balls are a martenistic-type stainless steel which is used extensively in
steel ball bearing applications that require hardness, dimensional stability, corrosion resistance and toughness.
440 Stainless Steel is also used for corrosion-resistant ball and check valves.
440 ball are resistant to corrosion from fresh water, steam, crude oil, gasoline, perspiration,
alcohol, blood and food stuffs. Maximum resistance to corrosion and tarnishing is only achieved
when 440 is fully hardened and surfaces are polished to a high luster.
440C Stainless Steel Ball Specification
|
Material
Specification |
C
|
Cr
|
Mn
|
Si
|
P
|
S
|
Mo
|
|
0.95-1.20%
|
16-18%
|
1.0%Max
|
1.0%Max
|
0.04%Max
|
0.03%Max
|
0.75%Max
|
|
|
Mechancial
Properties |
Tensile Strength
|
285,000 psi
|
|||||
|
Yield Strength
|
275,000 psi
|
||||||
|
Density
|
0.277 Ibs/cu in
|
||||||
|
Property |
0.277 Ibs/cu in
|
good corrosion resistance
|
|||||
|
Feature
(Magnetic) |
Magnetic, highest hardness
|
||||||
|
Material
Conversion |
ASTM / AISI
|
AISI440C
|
YB
|
JIS
|
|||
|
440c
|
SS440C
|
9Cr18Mo
|
SUS440C
|
||||
Application of Stainless Steel Ball
it used in the industry of high precision and antirust:
type440C balls are used in bearings , valves , locking mechanisms , fasteners and quick-disconnect couplings .
Steel Balls Quality Testing
1. Ball chose by people
2. Ball select by machine
3. Ball test by Vernier calipe
4. check ball surface by magnifying glass
5. Ball test by three needle gauge
6. Ball test hardness by hardness tester
Our Advantage
1. Professional manufacturer of steel balls since 1988.
2. Non-standard sizes of steel balls supplied.
3. Special types of steel balls supplied.
4. RoHS certified by SGS,ISO
5. Small MOQ with competitive price.
6. Fast delivery based on quality guaranteed.
7. Small quantity of free samples could be provided.
8. All inquiries and messages will be replied in 24 hours.
