Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | JN |
Certification: | SGS ISO |
Model Number: | 2MM 3MM 5MM 6.35MM 0.3MM-60MM |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500kg |
Price: | Negotiable |
Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
Supply Ability: | 10 Tons per Month |
Detail Information |
|||
Product Name: | Precision Stainless Steel Balls | Grade: | G100 |
---|---|---|---|
Application: | Finger Pumps And Food Processing | Feature: | Corrosion Resistance And Magnetic |
Material Model: | AISI304 | HS Code: | 8482910 |
High Light: | stainless steel round balls,round steel balls |
Product Description

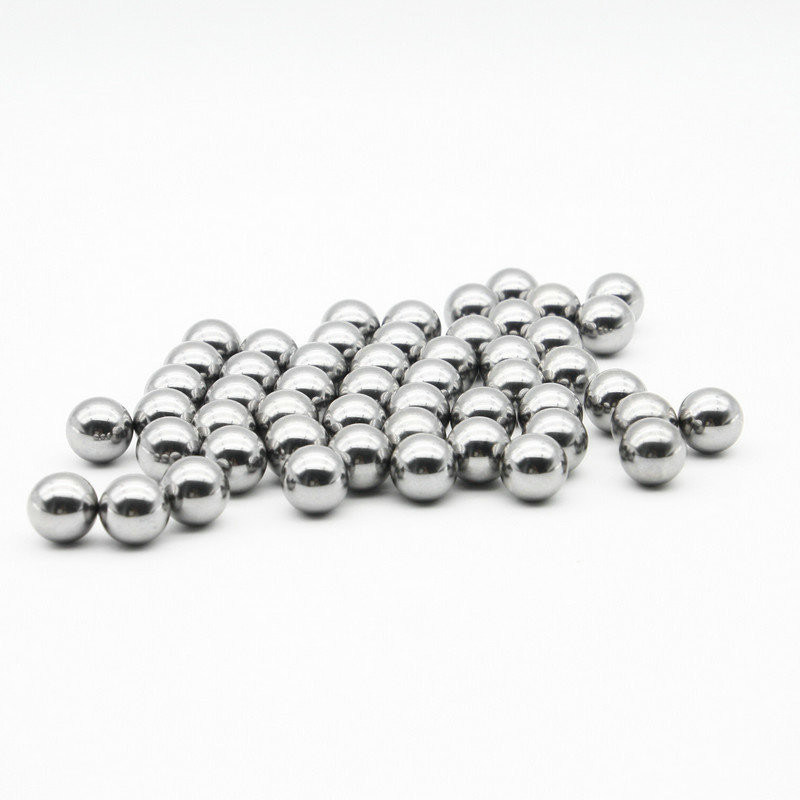

X5CrNi18-10 Precision 304 Stainless Steel Balls 2MM 3MM 5MM 6.35MM 0.3MM-60MM
AISI 304L provides lower carbon content, AISI 302 better mechanical characteristics.
Balls are provided in the passivated condition.
About Product:
Material Specification | C | Cr | Mn | Si | P | S | Ni |
0.08%Max | 18-20% | 2.0%Max | 1.0%Max | 0.045%Max | 0.03%Max | 8-10% | |
Mechancial Properties |
Tensile Strength | 100,000 - 180,000 psi | |||||
Yield Strength | 50,000 - 150,000 psi | ||||||
Density | 0.286 Ibs/cu in | ||||||
Physical Property |
Corrosion resistance | Good | |||||
Magnetic | Slighty ( Demag process avaibalbe ) | ||||||
Size Range | 0.3mm-60mm | ||||||
Hardness | HRC ≤ 26 | ||||||
Grade | G100 - G1000 | ||||||
Application | Type 304 balls are used in aerosol and dispenser valves , medical applications , animal feeders , trigger sprayers , finger pumps and food processing . | ||||||
Material Conversion |
ASTM / AISI | YB | JIS | DIN | |||
304 | 0Cr19Ni9 | SUS304 | 1.4301 |
Corrosion Resistance
304: Very good corrosion resistance with respect to organic substances, oxidating solutions, foodstuff, sterilizing solutions.
Good resistance with respect to atmospheric corrosion and dyes.
They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and to stress corrosion
when temperature exceeds 60°C. They do not resist to sulfuric acid solutions.
AISI 302 shows slightly best corrosion resistance with respect to AISI 304/304L stainless steels.
Application
304: Special bearings and pumps, aerosol pumps, gardening and household sprayers, perfume miniature pumps, seams,
medical application valves, agricultural backpack sprayers. They are used in foodstuff, aerospace and military industry.
