China Stainless Steel Balls manufacturer

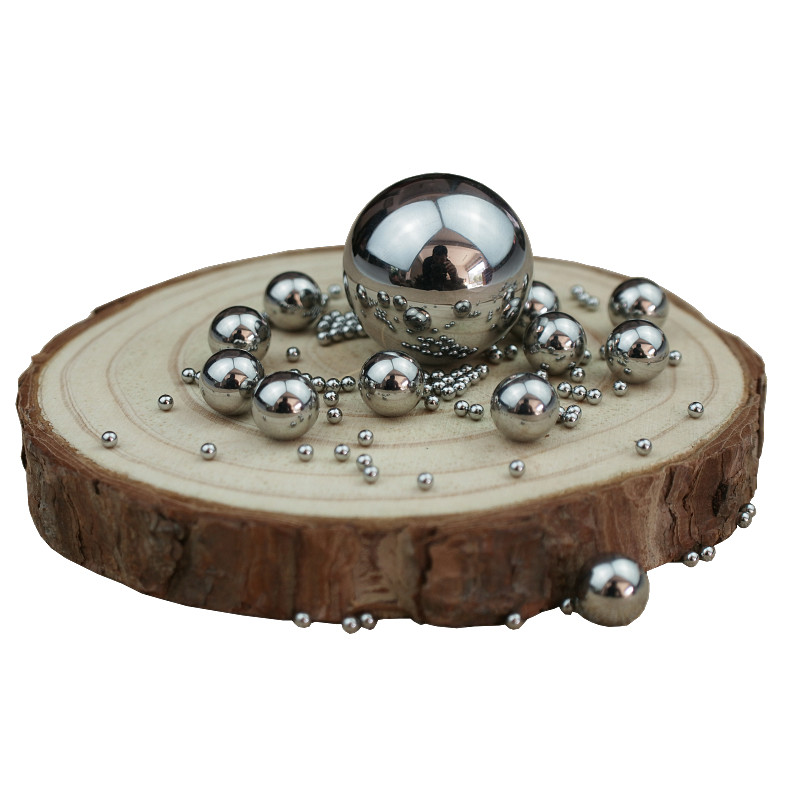

0.5mm G100 -G1000 Precision Steel Ball Bearings Small Stainless Steel Beads

Product Details:
Place of Origin: Shandong
Brand Name: JN
Certification: SGS ISO
Model Number: 0.5mm 1mm 1.5mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability: 10 Tons per Month

Detail Information

Product Name: 0.5mm Steel Ball Steel Ball Matrial: 304/316/316L/420C/440C
Standard: AISI, ASTM, DIN, EN, GB, JIS Hardness: HRC25-HRC58
Application: Bearing,valve,switch,automobile Industry Feature: Strong Rust Resistance
High Light:

0.5mm Steel Ball Bearings

,

G1000 Steel Ball Bearings

,

420C Stainless Steel Beads

Product Description



0.5mm G100 -G1000 Precision Steel Ball Bearings Small Stainless Steel Beads







AISI 304 Stainless steel balls
Speciality:A representative of Austenitic stainless steel.it is nonmagnetic,but magnetic after rolling,
and the magnetism can be taken out, HRC≤26.It has good antirust and anticorrosive capability.
Comparison:304HC stainless steel ball is softer and can be pocessed more easily than 304 stainless steel ball,
while 304L stainless steel ball has stronger antirust and anticorrosive capability than the above two, It can be jointed easily.
0.5mm G100 -G1000 Precision Steel Ball Bearings Small Stainless Steel Beads 0
AISI 316 Stainless steel ball
Size: 1.0mm- 63.5mm
Grade : G80-G500
Hardness: ≤HRC28
Magnetic:Austenitic steel, non-magnetic
Features: the most suitable for industries with high anti-corrosion requirements, and the anti-rust ability is very strong.
Applications:Valves, perfume bottles, medical equipment, nail polish, baby bottles, cosmetic packaging, air conditioners
0.5mm G100 -G1000 Precision Steel Ball Bearings Small Stainless Steel Beads 1



Material
Stainless steel 304 316 316L
Size
0.5MM-300MM Solid ball
Grade
G200
Tolerance: +/-0.005mm
Weight
28.17g /piece
MOQ
1pc
Package
plastic bag+carton box



Specification of stainless steel balls





Material
Density
Hardness
Tensile Strength
Magnetic

304
7.93 g/cm³
10~25 HRC
80,000~180,000 psi
Non-magnetic

316
7.98 g/cm³
10~25 HRC
80,000~120,000 psi
Non-magnetic

201
7.85 g/cm³
10~25 HRC
53,000 psi
Non-magnetic

420
7.75 g/cm³
48~55 HRC
95,000~250,000 psi
Magnetic

440
7.70 g/cm³
56~65 HRC
275,000~285,000 psi
Magnetic






Chymic component of 304 stainless steel balls
C
0.08% max.
Si
1.00% max.
Mn
2.00% max.
P
0.045% max.
S
0.030% max.
Cr
17.00 to 19.00%
Ni
8.00 -- 10.00%



Application Of Steel Balls



0.5mm G100 -G1000 Precision Steel Ball Bearings Small Stainless Steel Beads 2


Special bearings, pumps and valves, aerosol and dispenser sprayers. Utilised in the foodstuff, paper, chemical, rubber,



military, textile industry. Applications in photographic devices, medical instruments, quick couplings, recirculating balls,



ink cartridges, jewels.




Packing :





Package type
Steel drum packing
Carton package

250 kg per steel drum
25 kg per carton

4 drums on one pallet
36 cartons on one pallet
Carton size:
75*75*65
30*20*15





0.5mm G100 -G1000 Precision Steel Ball Bearings Small Stainless Steel Beads 3







Company Information





Jinnai Stainless Steel Ball Manufacture Co., Ltd is one of famous and professional stainless steel ball factory from china .
With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and

our products got SGS,RHOS Certificates .
We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430).

also produce chrome steel ball (AISI52100,100CR6,GCR15),

carbon steel ball(1015,1010,1045,1085),

copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball

and other kinds of material ball.
We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm.
Welcome to visit our factory and looking forwarder to cooperate with you !
