|Place of Origin:||Shandong|
Payment & Shipping Terms:
|Minimum Order Quantity:||500kg|
|Packaging Details:||Ploy bag+25kg carton box+1000kg wooden box|
|Delivery Time:||7-15 days|
|Payment Terms:||T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P|
|Supply Ability:||10 Tons per Month|
|Product Name:||Micro Steel Beads||Grade:||G10,G20,G28,G60,G100 G200 G500 G1000|
|Feature:||Strong Rust Resistance||Surface:||Mirror Polished|
|Material:||304 Stainless Steel Ball||Application:||Bearing,phamaceutical,bearing Cosmetic Nail Polish|
stainless steel round balls,
round steel balls

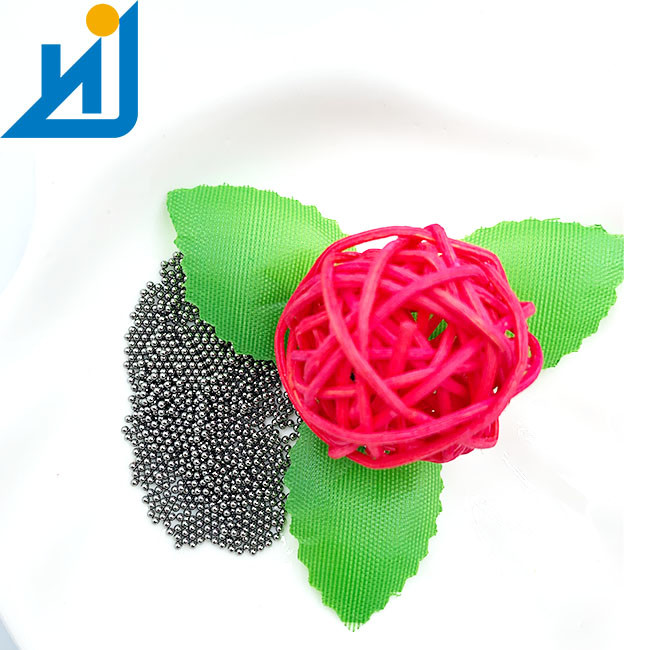

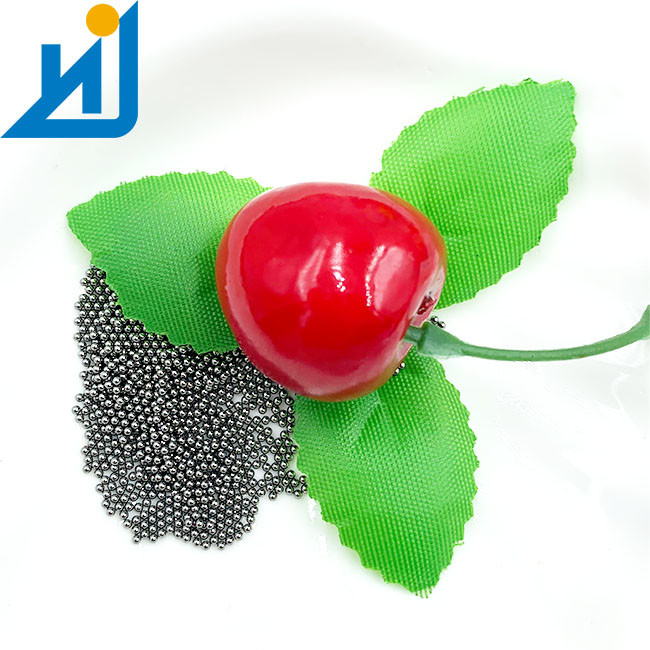

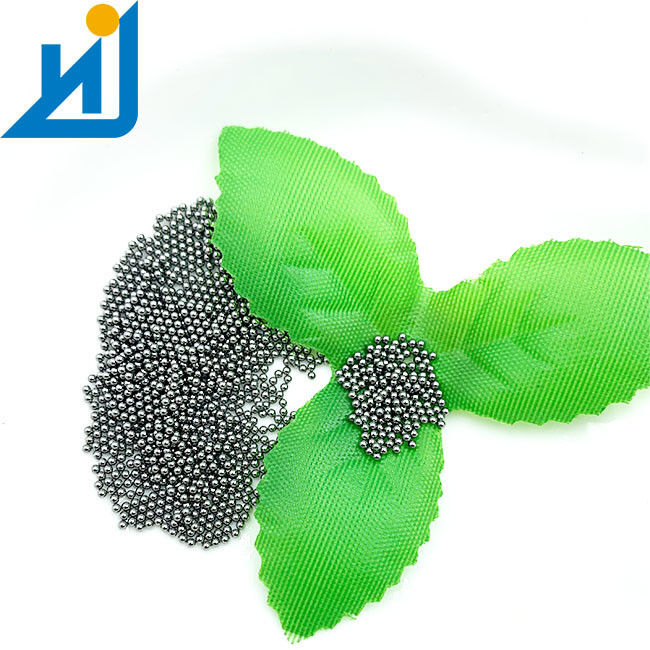

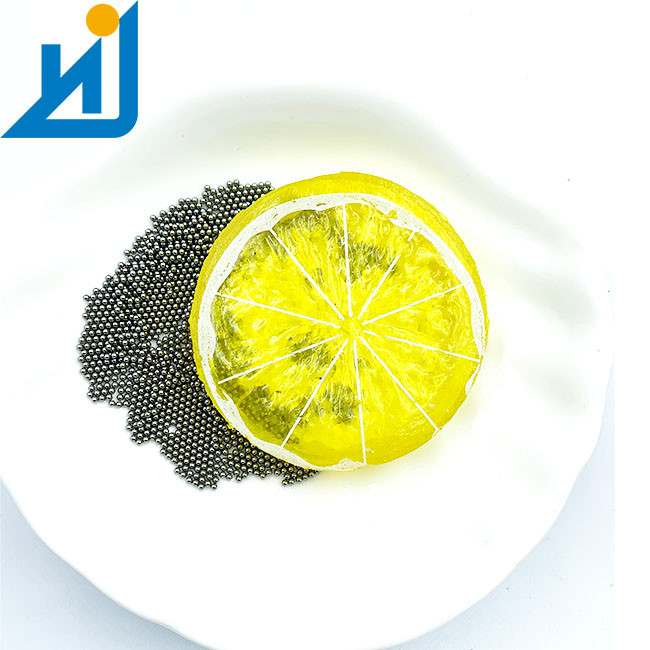

304 Anti Rust Stainless Steel Ball for Bearing Steel Balls Bearing Rolling Balls 0.35mm
1 304 stainless steel ball is a common material in stainless steel balls, with a density of 7.93g / cm3,
which is also called 18/8 stainless steel beads in the industry. 800 ° C
2 It has the characteristics of good processing performance and high toughness,
and is widely used in industrial and furniture decoration industries and food and medical industries.
304 is a versatile stainless steel bead, which is widely used to make equipment and parts
that require good comprehensive performance (corrosion resistance and formability).
3 In order to maintain the inherent corrosion resistance of stainless steel balls,
the steel must contain more than 18% chromium and more than 8% nickel.
4 304 stainless steel ball is a typical representative of austenitic steel, generally non-magnetic,
but after the light ball will be magnetic, can be demagnetized, HRC ≤ 26.
Has good rust and corrosion resistance
200 300 400 Series Micro Size 1mm 1.2mm 0.5mm Stainless Steel Ball for subminiature
304 stainless steel ball
ISO 9100:2008 / ISO/TS:16949
AISI, ASTM, DIN, JIS
Balls & roller bearings, Linear monition, Automotive components, Balls lead screws, Grinding media, Gardening and household sprayers, Perfume miniature pumps, etc.
2-Chemical Composition of all stainless steel ball
|201||0.15% Max||1% Max||16%~18%||5.5% Max||0.060% Max||0.03% Max||3.5%5.5%|
|304||0.08% Max||1% Max||18%~20%||2% Max||0.045% Max||0.03% Max||8%~10.5%|
|316||0.08% Max||1% Max||16%~18%||2% Max||0.045% Max||0.03% Max||10%~14%|
|420||0.15 % Max||1% Max||12%~14%||1% Max||0.040% Max||0.03% Max||-|
|430||0.12% Max||1% Max||16%~18%||1% Max||0.040% Max||0.03% Max||-|
|440||0.95%~1.2%||1% Max||16%~18%||1% Max||0.40% Max||0.03% Max||-|
|201||7.85 g/cm³||10~25 HRC||53,000 psi||Non-magnetic|
|304||7.93 g/cm³||10~25 HRC||80,000~180,000 psi||Non-magnetic|
|316||7.98 g/cm³||10~25 HRC||80,000~120,000 psi||Non-magnetic|
|420||7.75 g/cm³||48~55 HRC||95,000~250,000 psi||Magnetic|
|430||7.73 g/cm³||52~60 HRC||107,000~140,000 psi||Magnetic|
|440||7.70 g/cm³||56~65 HRC||275,000~285,000 psi|
Austenitic stainless steel balls with higher corrosion resistance than AISI 304 balls. They show good toughness.
AISI 316L has a lower carbon content (maximum 0,030%). Balls are provided in the passivated condition.
Very good corrosion resistance with respect to organic substances, good resistance to several strong acids
(acetic, phosphoric, sulphuric acid) and on sea water.
They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and
to stress corrosion when temperature exceeds 60°C.
They do not resist in contact with hydrochloric and hydrofluoric acids, aqua regia, iron and magnesium chlorides.
They are subjected to pitting corrosion in sea water environments. Poor corrosion resistance in acid environments.
Special bearings, pumps and valves, aerosol and dispenser sprayers. Utilised in the foodstuff, paper, chemical, rubber,
military, textile industry. Applications in photographic devices, medical instruments, quick couplings, recirculating balls,
ink cartridges, jewels.
Jinnai Stainless Steel Ball Manufacture Co., Ltd is one of famous and professional stainless steel ball factory from china .
With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and
our products got SGS,RHOS Certificates .
We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430).
also produce chrome steel ball (AISI52100,100CR6,GCR15),
carbon steel ball(1015,1010,1045,1085),
copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball
and other kinds of material ball.
We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm.
Welcome to visit our factory and looking forwarder to cooperate with you !
