China Stainless Steel Balls manufacturer

G100 304 Stainless Steel Round Balls , 304S15 3mm Steel Ball Aerosol Dispenser Valves

Product Details:
Place of Origin: China
Brand Name: JN
Certification: SGS ISO
Model Number: 3MM
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability: 10 Tons per Month

Detail Information

Product Name: Stainless Steel Balls Grade: G100
Application: Animal Feeders , Trigger Sprayers No. Of Per Kg: 9091 PCS
Material Model: AISI304 HS Code: 8482910
High Light:

stainless steel round balls

,

solid metal ball

Product Description

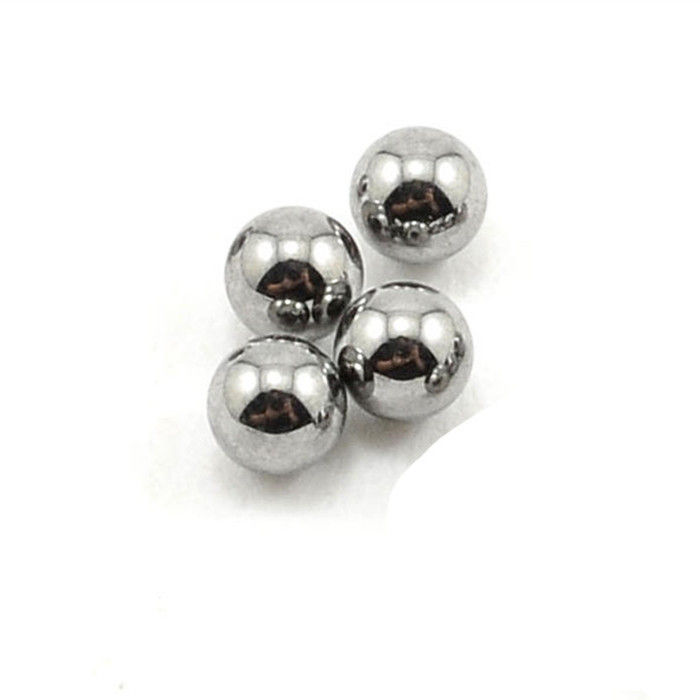

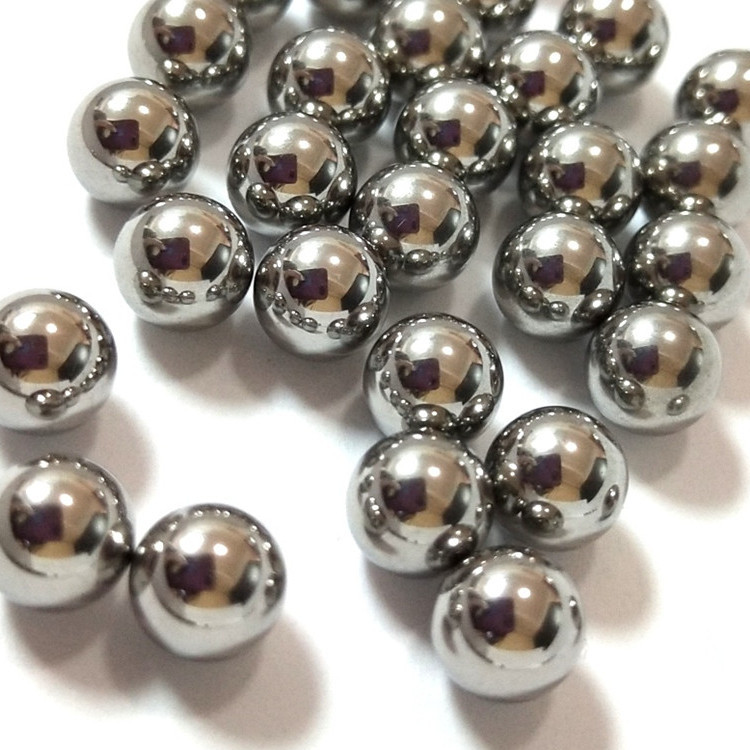

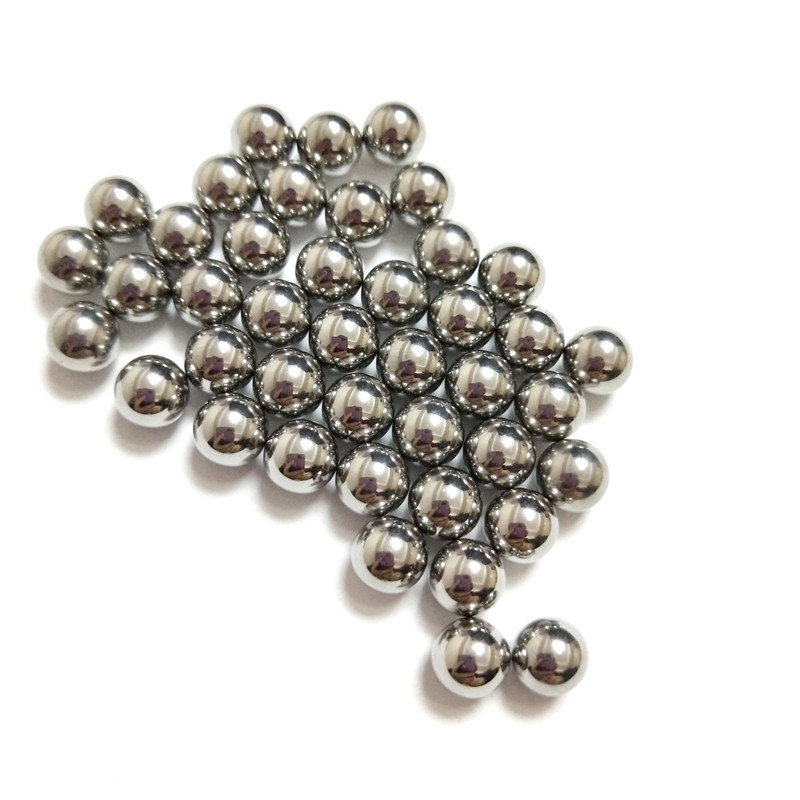

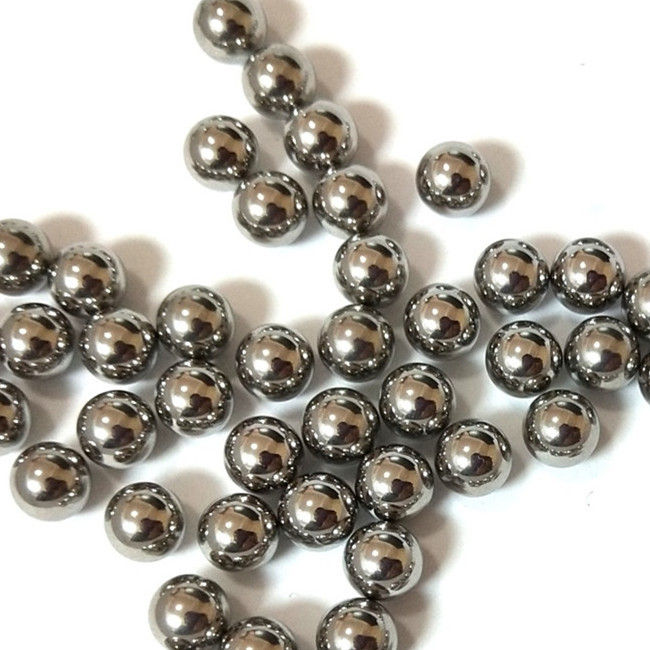

G100 304 Stainless Steel Ball 3MM 304S15 Steel Ball For Aerosol Dispenser Valves





AISI 304L provides lower carbon content, AISI 302 better mechanical characteristics.



Balls are provided in the passivated condition.



About Product:



Material Specification C Cr Mn Si P S Ni
0.08%Max 18-20% 2.0%Max 1.0%Max 0.045%Max 0.03%Max 8-10%


Mechancial

Properties

Tensile Strength 100,000 - 180,000 psi
Yield Strength 50,000 - 150,000 psi
Density 0.286 Ibs/cu in


Physical

Property

Corrosion resistance Good
Magnetic Slighty ( Demag process avaibalbe )

Size Range 0.3mm-60mm
Hardness HRC ≤ 26
Grade G100 - G1000

Application Type 304 balls are used in aerosol and dispenser valves , medical applications , animal feeders , trigger sprayers , finger pumps and food processing .


Material

Conversion

ASTM / AISI YB JIS DIN
304 0Cr19Ni9 SUS304 1.4301





International Standards



  304
USA AISI304
JAP SUS304
UK 304S15
CHN 0Cr18Ni9
RUS 08KH18N10
ITA X5CrNi18-10
FRA Z7CN18-09
GER 1.4301



Corrosion Resistance



304: Very good corrosion resistance with respect to organic substances, oxidating solutions, foodstuff, sterilizing solutions.



Good resistance with respect to atmospheric corrosion and dyes.



They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and to stress corrosion



when temperature exceeds 60°C. They do not resist to sulfuric acid solutions.



AISI 302 shows slightly best corrosion resistance with respect to AISI 304/304L stainless steels.


Application


304: Special bearings and pumps, aerosol pumps, gardening and household sprayers, perfume miniature pumps, seams,



medical application valves, agricultural backpack sprayers. They are used in foodstuff, aerospace and military industry.
