T2 Solid Copper Balls 0.5mm 1.2mm 1.588mm For Electronic Industry Stable

Product Details:
Place of Origin: China
Brand Name: JN
Certification: ISO SGS
Model Number: 0.5mm 1mm 1.2mm 1.5mm 1.588mm
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10tons per week

Detail Information

Product Name: Copper Balls Feature: Good Mechanical And Corrosion Resistance Properties
Application: Electronic Industry Density: 8.9g/cm3
Material: H62 Or H65 Size Range: 1mm-50mm
High Light:

solid brass balls

,

large copper ball

Product Description

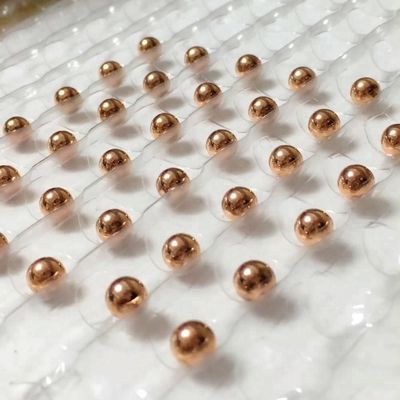

T2 Solid Copper Balls 0.5mm 1mm 1.2mm 1.5mm 1.588mm For Electronic Industry

Solid copper ball

Nearly pure copper balls, they show good mechanical and corrosion resistance properties,

excellent thermal and electric conductivity. Small amounts of alloying elements as Cr, Zr, Ag, Cd, Mg, Sn

allow to improve the mechanical properties.

Characteristics and uses of solid copper balls


Our pure copper balls are noted for their corrosion resistance and their excellent ability to conduct



both heat and electricity. While their conductivity makes them ideal for electrical applications,



their corrosion resistance suits them to use in marine environments and industrial settings



where halogens, salts, sulphides, and water are present.


Applications
Copper balls are used in galvanic applications and in the field of electronic industry.

Chemical composition

%Cu
%Other
-
-
-
-
-
-
-
-
-
-
99.900 min
0.010 max
-
-
-
-
-
-
-
-
-
-

International standards

EN
USA
GER
FRA
UK
RUS
CHN
JAP
CW004A
C11000
2.0065
Cu-a 1
C101
M0
T2



C 1100

Physical / mechanical / thermal / electric / magnetic properties

Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
8.91
Young's modulus
E
[GPa]
Mechanical
-
123
Specific heat
c
[J/kg-K]
Thermal
Room temp.
385
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
16.9
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
393.0
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
17
Relative magnetic permeability
µ
-
Magnetic
Paramagnetic
1.010

Technical data



Property
Type
U.o.M.
Values
U.o.M.
Values
Hardness
Mechanical
[HV]
40 - 120
-
-
Ultimate tensile strength
Mechanical
[MPa]
220 - 320
[psix10^3]
31 - 46
Service temperature
Thermal
[ºC]
-196 / 260
[ºF]
-320.8 / 500



Corrosion Resistance
Good corrosion resistance in marine and industrial atmospheres, steam, alkali, neutral saline solutions. They do not resist in contact with oxidizing acids, halogens, sulphides, ammonia, sea water.
