Detail Information
Produce Name:	Precision Steel Ball	Grade:	G10-G100
Hardness:	HRC58-65 HRC	Standard:	AISI
Tolerance:	0.002~0.02mm Refers To Grade	Chrome Type:	Aisi52100 100cr6
High Light:	ball bearing steel ball , tiny metal balls

Product Description

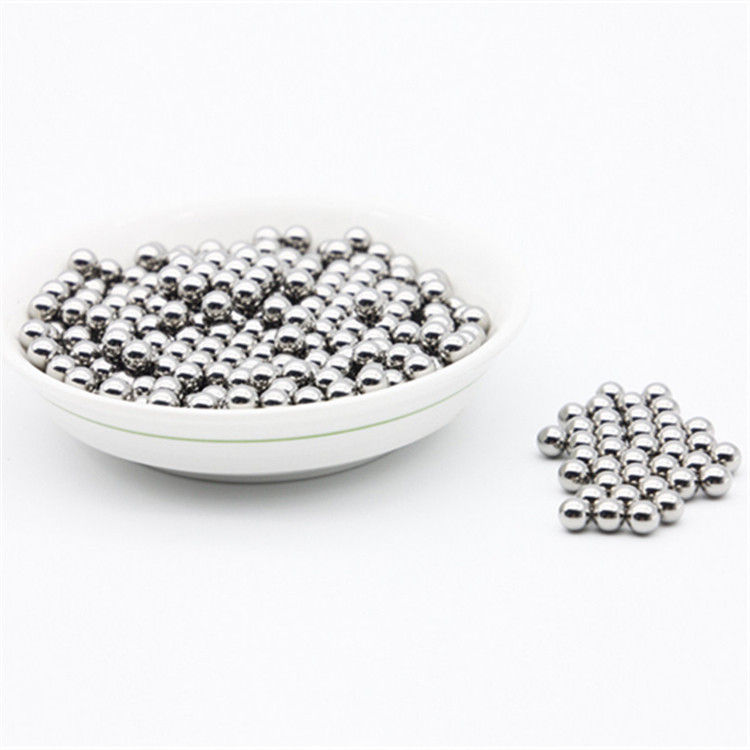

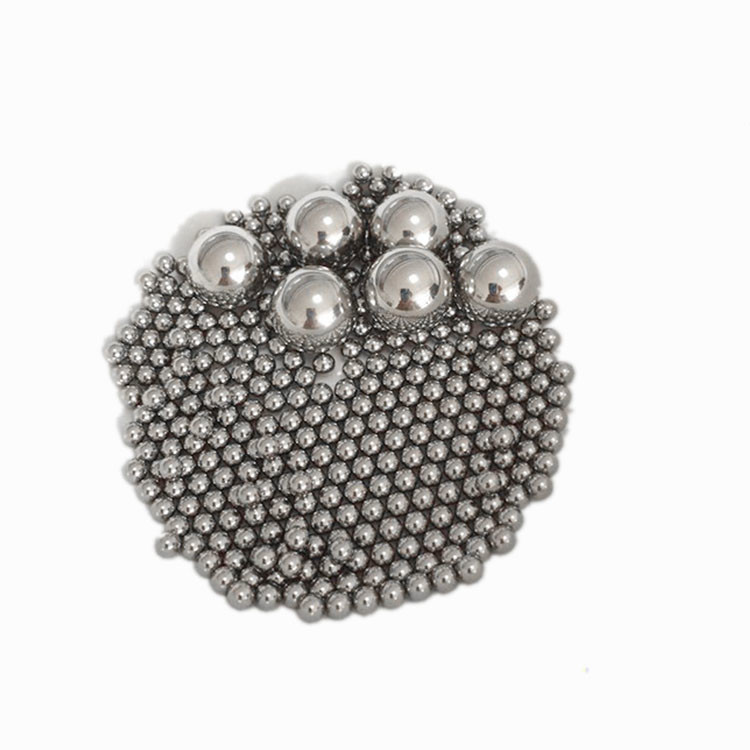

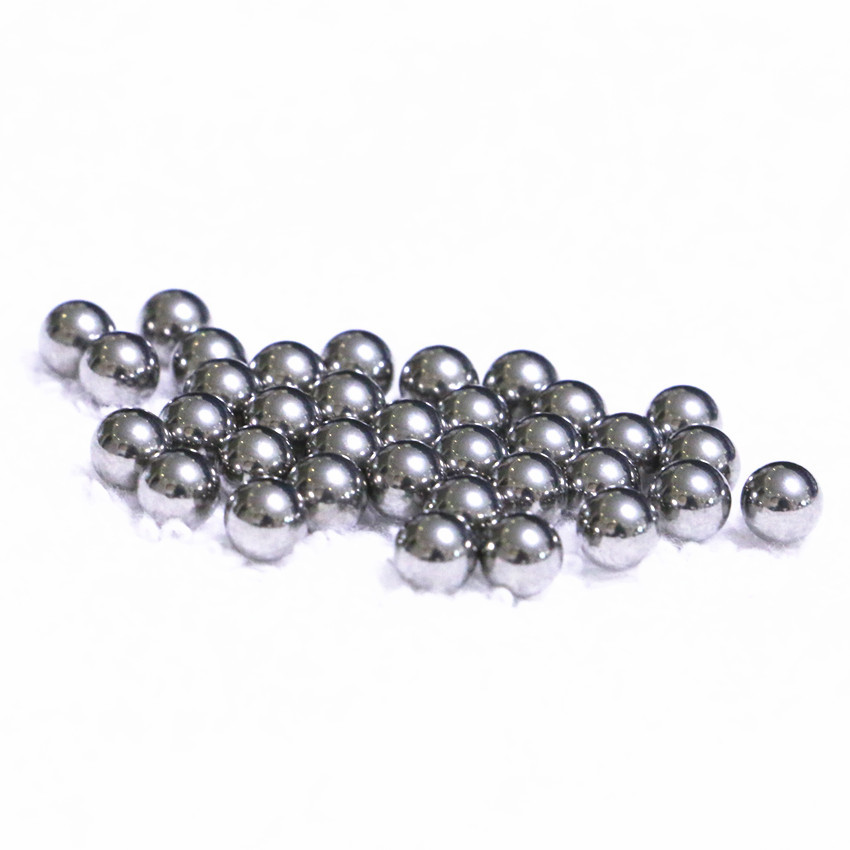

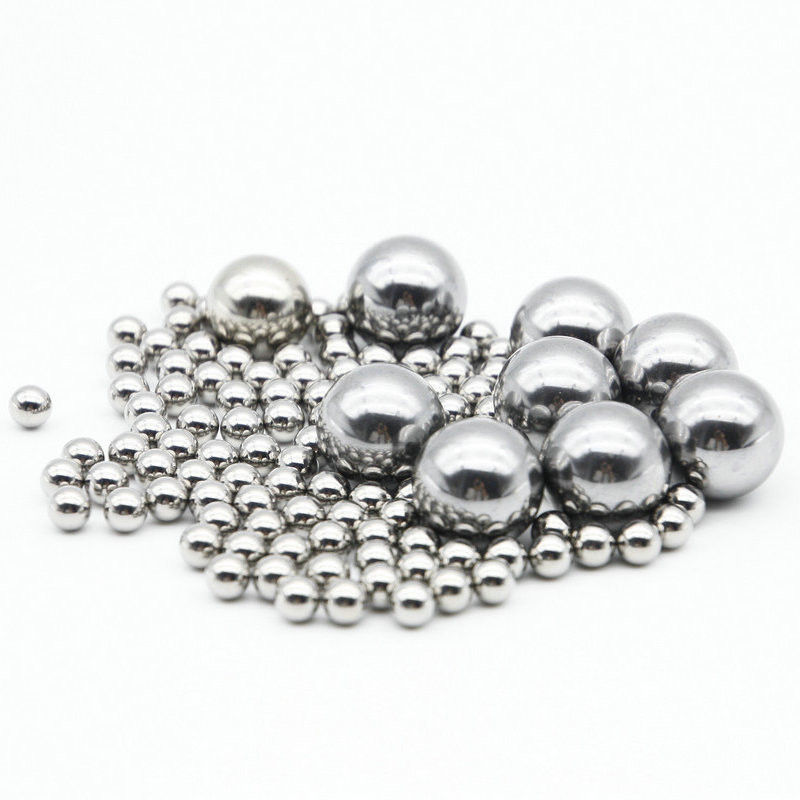

3.969MM Chrome Steel Ball G10-G100 Aisi52100 100cr6 For Recirculating Balls

Characteristics

Low alloy martensitic chrome steel, AISI 52100 thanks to its high hardness, wear resistance,

surface finishing and dimensional precision, it is widely used to manufacture mechanical components.

Low alloy hardened chromium steel balls, they show excellent hardness, wear resistance,

very good surface finishing and dimensional stability.

Applications

Precision bearings, automotive components (brakes, steering, line shaft), ball transfer units,

linear ball bearings, bike and motor-bike components, appliances, quick couplings,

machine tool, lock mechanisms, conveyor belts, skates, ball pens, pumps, castors,

measurement instruments, valves, recirculating balls.

Utilized in browning, polishing and milling machineries.

Basic Informaiton

Chrome steel ball/bearing steel ball
1. Material		AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505
2. Size Range		0.6mm-180mm
3. Grade		G10-1000
4. Hardness		58-65 HRC
5. Magnetic		Yes
6. Applications		Bearings, Ball screws, Automotive (transmission, steering, anti-lock brakes) Valves...

Chemical Composition

%C	%Si	%Mn	%P	%S	%Cr	%Mo	%Cu	%Al	%O
0.93-1.05	0.15-0.45	0.60-0.80	0.025 max	0.015 max	1.65-1.95	0.20-0.35	0.30 max	0.050 max	0.0015 max

Physical / mechanical / thermal / electric / magnetic properties

Property	Symbol	U.o.M.	Type	Notes	Values
Density	δ	[g/cm3]	Physical	Room temp.	7.82
Young's modulus	E	[GPa]	Mechanical	-	205
Specific heat	c	[J/kg-K]	Thermal	Room temp.	477
Coefficient of linear thermal expansion	α	[10^-6/ºC]	Thermal	(ΔT=0-100°C)	13.1
Thermal conductivity	λ	[W/(m·K)]	Thermal	Room temp.	42.7
Electric resistivity	ρ	[Ωm10^-9]	Electric	-	218
Relative magnetic permeability	µ	-	Magnetic	Ferromagnetic	> 300

International standards

ITA	USA	GER	FRA	UK	RUS	CHN	JAP
100Cr6	52100	1.3505	100C6	534A99	9Ch1	GCr15	SUJ2

3.969MM Round Steel Balls , Solid Metal Ball G10-G100 Aisi52100 100cr6 Recirculating 0

Tag:

Product Details:
Place of Origin:	China
Brand Name:	JN
Certification:	SGS ISO
Model Number:	5/32 Inch 3.969mm
Payment & Shipping Terms:
Minimum Order Quantity:	500kg
Price:	Negotiable
Packaging Details:	Ploy bag+25kg carton box+1000kg wooden box
Delivery Time:	7-15 days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability:	50 Tons per Month

3.969MM Round Steel Balls , Solid Metal Ball G10-G100 Aisi52100 100cr6 Recirculating

ball bearing steel ball
