China Stainless Steel Balls manufacturer

1/2 Inch G100 Gcr15 Chrome Steel Balls For Shopping Trolley 6.35mm 12.7mm

Product Details:
Place of Origin: China
Brand Name: JN
Certification: SGS ISO
Model Number: 1/2 inch 6.35mm
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability: 50 Tons per Month

Detail Information

Produce Name: 12.7mm Steel Ball Ball Range: Carbon Steel Ball,stainless Steel Ball,chrome Steel Ball
Hardness: HRC58-65 HRC Steel Ball Material Range: AISI1010/1015/201/316/304/420/420C/440
OEM: Drilled ,threaded ,hollow ,solid ,plating Solid Ball Size Range: 0.3mm-200mm
High Light:

ball bearing steel ball

,

small round metal balls

Product Description

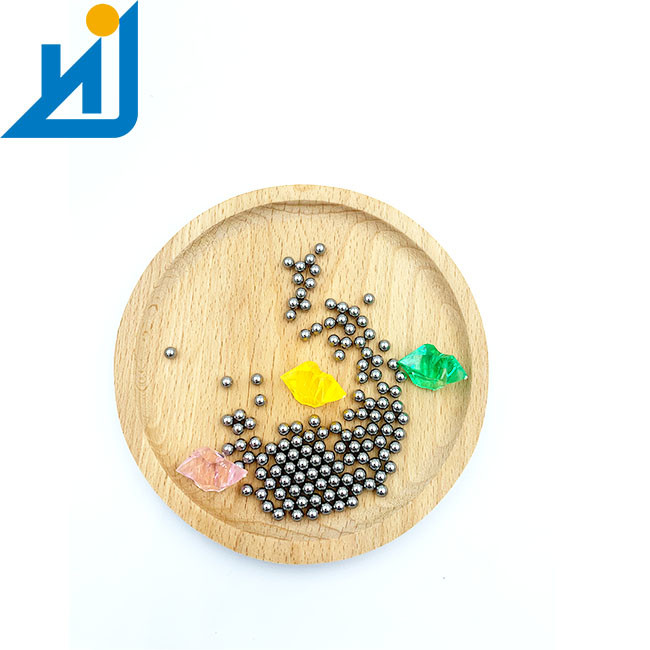

1/2 inch G100 Gcr15 Chrome Steel Balls for Shopping Trolley Metal Iron Balls 6.35mm 12.7mm



1/2 Inch G100 Gcr15 Chrome Steel Balls For Shopping Trolley 6.35mm 12.7mm 0



Characteristics



Low alloy hardened chromium steel balls, they show excellent hardness, wear resistance,

very good surface finishing and dimensional stability.




Basic Informaiton



Chrome steel ball/bearing steel ball
1. Material AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505
2. Size Range 0.6mm-180mm
3. Grade G10-1000
4. Hardness 58-65 HRC
5. Magnetic Yes
6. Applications Bearings, Ball screws, Automotive (transmission, steering, anti-lock brakes) Valves...



Bearing Balls Chemical Composition



Chrome steel

C

Si

Mn

P

S

Ni

Cr

AISI
52100

0.95
1.1

0.15
0.35

0.25
0.45

0.03
MAX

0.03
MAX

0.03
MAX

1.35
1.65


Physical / mechanical / thermal / electric / magnetic properties

Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
7.82
Young's modulus
E
[GPa]
Mechanical
-
205
Specific heat
c
[J/kg-K]
Thermal
Room temp.
477
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
13.1
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
42.7
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
218
Relative magnetic permeability
µ
-
Magnetic
Ferromagnetic
> 300



1/2 Inch G100 Gcr15 Chrome Steel Balls For Shopping Trolley 6.35mm 12.7mm 1

1/2 Inch G100 Gcr15 Chrome Steel Balls For Shopping Trolley 6.35mm 12.7mm 2

Grade G8 G16 G40 G60 G100 G200 G500 G1000



Precision

G8:±0 μm G16:±0.4 μm G40:±1 μm G60:±2 μm

G100:±2.5μm G200:±5μm G500 :±10μm G1000 :±20μm

Hardness 25HRC 28HRC 30HRC58HRC 60HRC 63HRC 67HRC 68HRC













Iron Ball Metric sizes

0.35mm 0.5mm 0.8mm 1mm 1.2mm 1.5mm 1.588mm 1.7mm 1.8mm 1.9mm 2mm

2.381mm 2.5mm 3mm 3.175mm 3.5mm 3.96mm 4mm 4.76mm 5mm 5.556mm

6mm 6.35mm 6.8mm 7mm 7.144mm 7.938mm 8mm 8.5mm 8.7mm 9mm 9.525mm

10mm 11mm 12mm 12.7mm 13.5mm 14mm 14.288mm 15mm 15.875mm 17.4mm

18mm 19.05mm 20mm 22mm 25mm 25.4mm 30mm 35mm 38mm 40mm 45mm

50mm 50.8mm 100mm 150mm 200mm



Steel Ball Size in inches



1/32 1/16 3/32 1/8 5/32 3/16 7/32 1/4 9/32 5/16 11/32 3/8 7/16

1/2 17/32 9/16 5/8 11/16 3/4 7/8 1 1-1/16 1-1/8 1-1/4 1- 5/16

1-3/8 1-1/2 1-3/4 2 2-1/4 2-1/2 2-3/4 3 4 6 8



Dear customer,



Thank you for your interest in our products.



Besides the above sizes, we make all regular size, from 0.35mm to 60mm, and other material like stainless steel,



chrome steel, copper also available.



Any demand for steel balls, welcome send us inquiry for immediate quotation during working time.



1/2 Inch G100 Gcr15 Chrome Steel Balls For Shopping Trolley 6.35mm 12.7mm 3



About Our Company



Jinnai Stainless Steel Ball Manufacture Co., Ltd is one of famous and professional stainless steel ball factory from china .


With over 20years history,our factory have good reputation from our customers and government,



so our factory passed ISO9001:2008 and our products got SGS,RHOS Certificates .


We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430).

also produce chrome steel ball (AISI52100,100CR6,GCR15),

carbon steel ball(1015,1010,1045,1085),

copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball

and other kinds of material ball.


We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm.


Welcome to visit our factory and looking forwarder to cooperate with you !
