Name: 99% Pure Sphere Bearing Solid Copper Balls 4mm 6mm 8mm 10mm Dia
Brand: JN
SKU: 4mm 6mm 8mm 10mm

Detail Information
Product Name:	Copper Bearing Balls	Feature:	Good Corrosion Resitance
Application:	Electric,switch,carburetor	Size Range:	0.8mm-45mm
Material:	Copper Or Brass	Type:	Hollow Or Solid
Surface:	Polishing Finish
High Light:	small copper balls , solid brass balls

Product Description

Wholesale 99% Pure Solid Copper Sphere Bearing Balls 4mm 6mm 8mm 10mm

The brass ball produced mainly used H62 copper,usually in kinds of electric,switch,carburetor.

Brass ball is soft so it is easy to be drilled,then usually used in valve and art ware.

Basic Information of Copper Balls

Diameter	0.5mm / 50.8mm
Material	Brass ball H62, H65 / Copper ball 99%CU
Feature	Brass balls show fairish mechanical performance, good corrosion resitance, excellent electrical properties. They generate low frictions. Balls are provided in the passivated condition.
Application	Special valves, industrial pumps and valves, electronic devices, safety switches, heating units, appliances, furniture rails. They are used in the automotive, electronic and petrolchemical industry.

Physical / mechanical / thermal / electric / magnetic properties

Property	Symbol	U.o.M.	Type	Notes	Values
Density	δ	[g/cm3]	Physical	Room temp.	8.49
Young's modulus	E	[GPa]	Mechanical	-	110
Specific heat	c	[J/kg-K]	Thermal	Room temp.	375
Coefficient of linear thermal expansion	α	10^-6/ºC]	Thermal	(ΔT=0-100°C)	20.4
Thermal conductivity	λ	[W/(m·K)]	Thermal	Room temp.	118.0
Electric resistivity	ρ	[Ωm10^-9]	Electric	-	63
Relative magnetic permeability	µ	-	Magnetic	Paramagnetic	1.05

Technical data

Property	Type	U.o.M.	Values	U.o.M.	Values
Hardness	Mechanical	[HRB]	75 - 95	-	-
Ultimate tensile strength	Mechanical	[MPa]	500 - 600	[psix10^3]	72 - 87
Service temperature	Thermal	[ºC]	-196 / 500	[ºF]	-320.8 / 932

Corrosion Resistance
Good corrosion resistance in drinking-water, brackish water, sea-water (except at high flow rate), salt atmospheres, petroleum products, alcohols. Fairish resistance with respect to acids and alkali. It does not resist in contact with hydroxides, cyanides, oxidizing acids. As a general rule, corrosion resistance decreases as zinc content increases.

Hollow or Solid Copper Balls Type

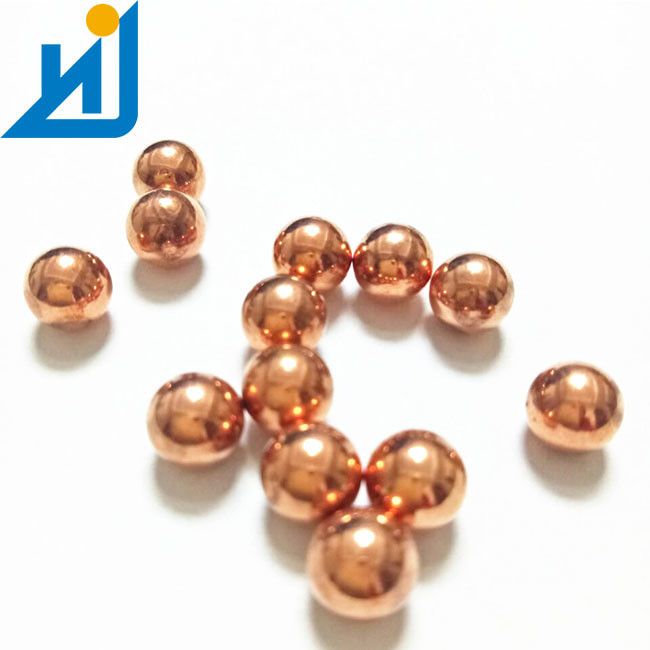

99% Pure Sphere Bearing Solid Copper Balls 4mm 6mm 8mm 10mm Dia 1

Packing of Brass Balls

1.Plastic bag +Carton box(25kg)+Wooden

2.Plastic bag +Steel drums(250kg)+Wooden

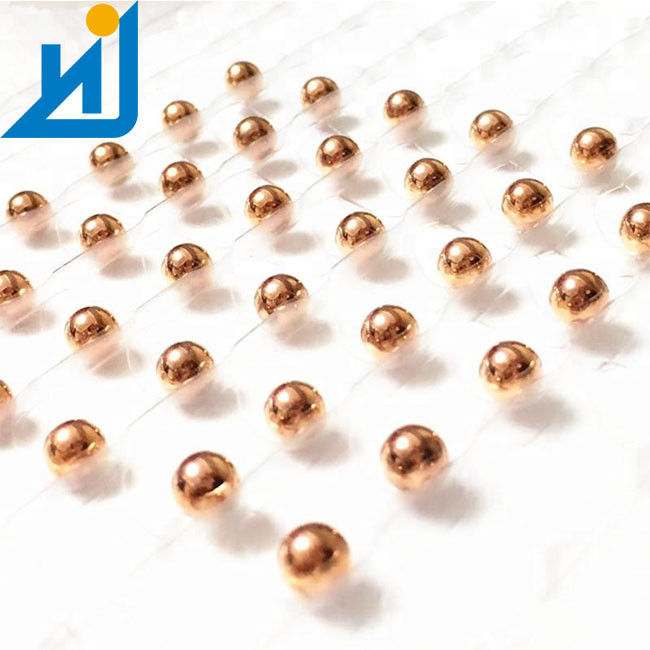

99% Pure Sphere Bearing Solid Copper Balls 4mm 6mm 8mm 10mm Dia 2

We could produce other material steel balls

	AISI	DIN	YB	JIS
Stainless Steel Ball	302	302	1.4300	1Cr18Ni9	SUS302
	304	304	1.4301	0Cr19Ni9	SUS304
	316	316	1.4401	0Cr17Ni12Mo2	SUS316
	420	420	1.4028	3Cr13	SUS420JS
	440C	440C		9Cr18Mo	SUS440C
Bearing Steel Ball	GCr15	E52100	1.3505	GCr15	SUJ2
Carbon Steel Ball	15	1015	CK15	15	S15CK
	45	1045	CK45	45	S45C
	85	1084		85	SUP3
Other ball	Plastic ball , Polishing and grinding ball , Copper brass ball , Glass ball , Fly saucer ball , Tungsten carbide ball , Titanium ball , Hollow stainless steel ball ....

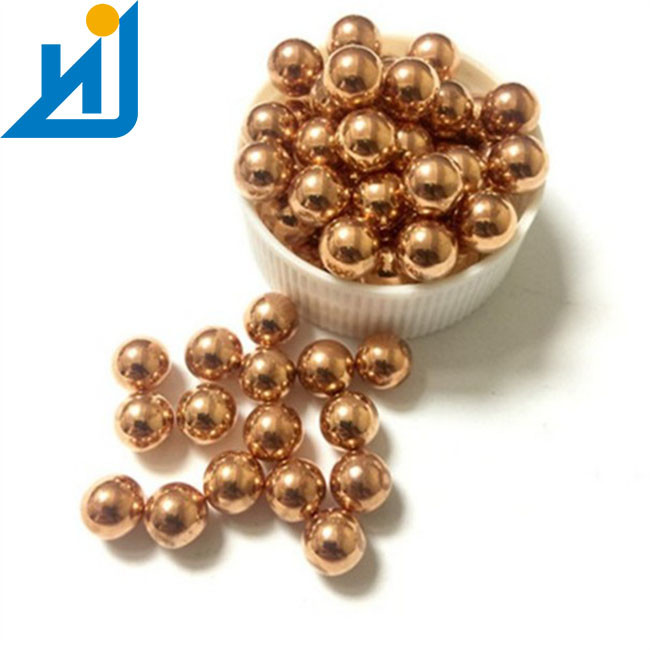

99% Pure Sphere Bearing Solid Copper Balls 4mm 6mm 8mm 10mm Dia 3

Want to buy copper balls or brass balls How to Contact us ?

Tag:

Product Details:
Place of Origin:	China
Brand Name:	JN
Certification:	ISO SGS
Model Number:	4mm 6mm 8mm 10mm
Payment & Shipping Terms:
Minimum Order Quantity:	500kg
Price:	Negotiable
Packaging Details:	Ploy bag+25kg carton box+1000kg wooden box
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability:	10tons per week
