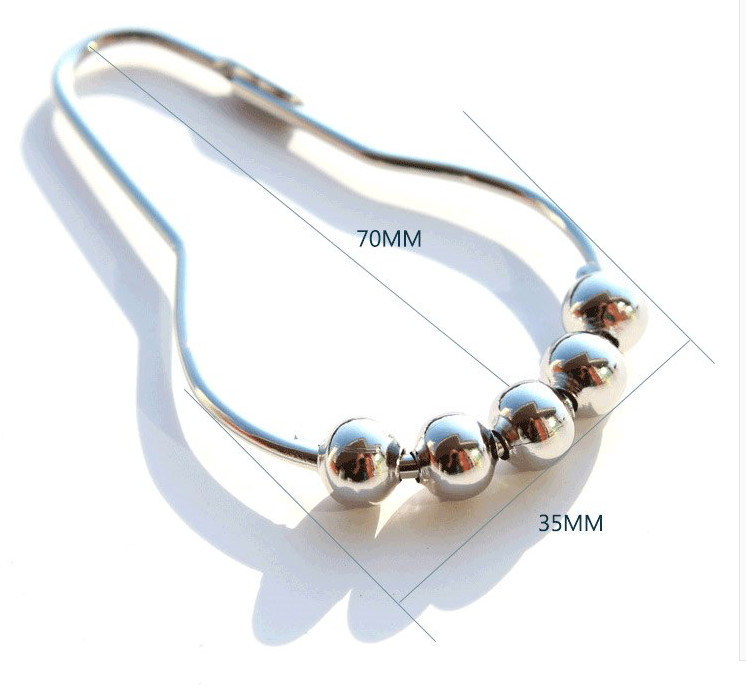

AISI 1010 Bicycle Loose Steel Balls , 1/4 Stainless Ball Bearings Curtains Hook
AISI 1010 Bicycle Loose Steel Balls , 1/4 Stainless Ball Bearings Curtains Hook AISI 1010 Bicycle Loose Steel Balls , 1/4 Stainless Ball Bearings Curtains Hook AISI 1010 Bicycle Loose Steel Balls , 1/4 Stainless Ball Bearings Curtains Hook AISI 1010 Bicycle Loose Steel Balls , 1/4 Stainless Ball Bearings Curtains Hook

AISI 1010 Bicycle Loose Steel Balls , 1/4 Stainless Ball Bearings Curtains Hook

Product Details:
Place of Origin: China
Brand Name: JN
Certification: SGS ISO
Model Number: 1/4 Inch 6.35MM
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability: 25 Tons per Month
Contact Now

Detail Information
Product Name: Low Carbon Steel Balls Grade: G1000
Hardness: HRC55-HRC63 Density: 7.82g/cm3
Young's Modulus: 200GPa Application: Curtains Hook
High Light:

precision steel balls

,

soft steel balls

Product Description

AISI 1010 AISI 1015 G100 Bicycle Low Carbon Steel Ball For Curtains Hook 1/4

Our carbon steel balls come in four varieties:

low carbon steel cemented,

low soft unhardened carbon steel

low carbon steel, and high carbon balls

 Chemical Composition


Type
%C
%Si
%Mn
%P
%S
1010
0.08-0.13
0.10-0.35
0.30-0.60
0.040 max
0.050 max
1015
0.12-0.18
0.10-0.35
0.30-0.60
0.040 max
0.050 max


Mechanical Properties


Property
Type
U.o.M.
Values
U.o.M.
Values
Hardness
Mechanical
[HRC]
55 - 65
-
-
Ultimate tensile strength
Mechanical
[MPa]
300 - 400
[psix10^3]
43 - 58
Service temperature
Thermal
[ºC]
-40 / 500
[ºF]
-40 / 932


International Standards


ITA
USA
GER
FRA
UK
RUS
CHN
JPN
C10
1010
1.1121
CC10
040A10
10
10
S10C
C15
1015
1.1141
XC12
080M15
15
15
S15C




Applications
Furniture rails and rollers, drawers and rolling bearings, locks, oilers and greasers, skates, caddies,

toys, belt and roller conveyors, tumble finishing.



Range

Diameters (min/max)
U.o.M.
Diameters (min/max)
U.o.M.
Precision grades (ISO 3290-1 / DIN 5401 / AFBMA)
1.500 - 300.000
[mm]
1/16 - 12
["]
G100-200-300-500-600-700-1000


Carbon steel balls are made from a combination of steel and carbon, with carbon present

in concentrations lower than 0.093%. The carbon acts as a hardening agent, providing additional strength,

at a lower cost than alternative hardening techniques.

They can be used in anything from furniture castors to sliding rails, polishing and milling machines,

peening processes, and welding appliances, depending on the type of carbon steel balls you choose.
