Product Details:
|
|
Place of Origin: | CHINA |
---|---|
Brand Name: | JN |
Certification: | SGS |
Model Number: | 75mm |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500kg |
Price: | Negotiable |
Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
Delivery Time: | 7-15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
Supply Ability: | 500TONS PER MONTH |
Detail Information |
|||
Product Name: | Casting Grinding Media Balls | Breakage Rate: | ≤1% |
---|---|---|---|
Microstructure: | M+C | Hardness: | HRC60-65 |
Technique: | Mould Casting | Drop Times: | >10000 |
Highlight: | steel balls for ball mill,forged grinding balls |
Product Description

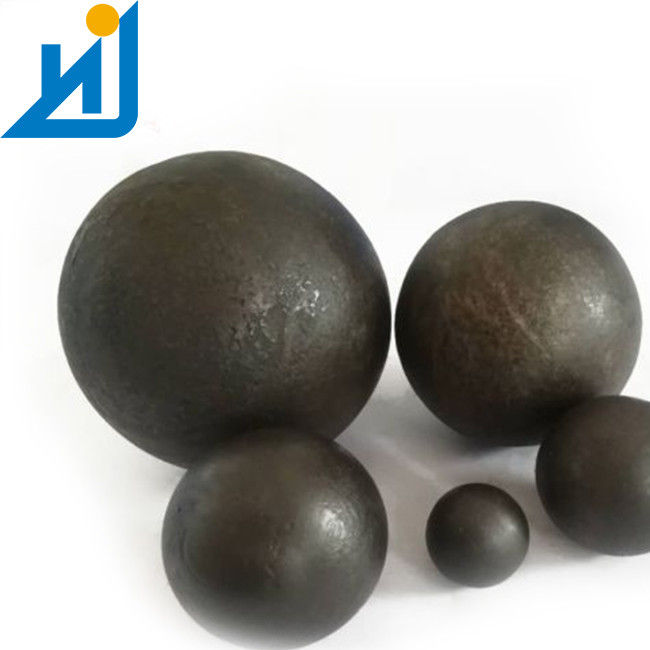

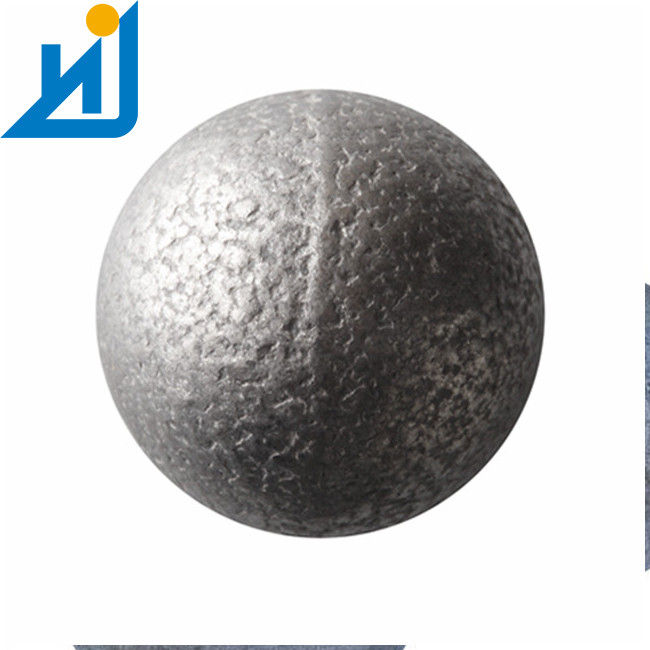

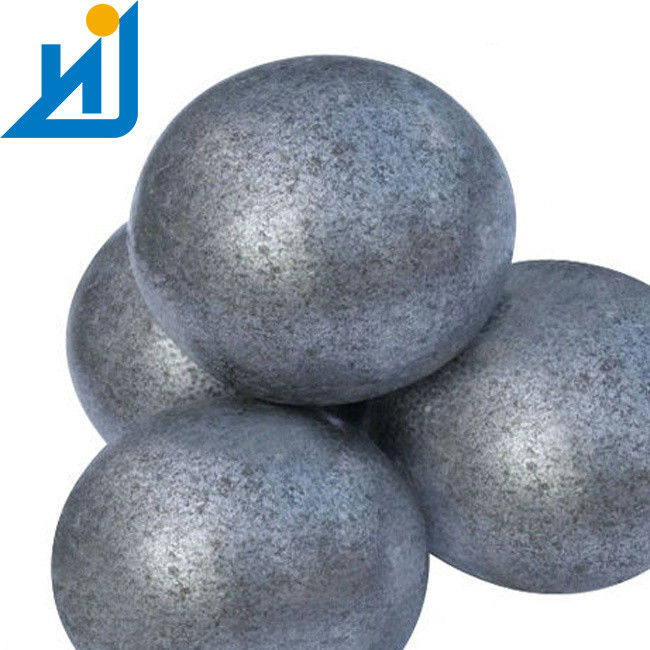

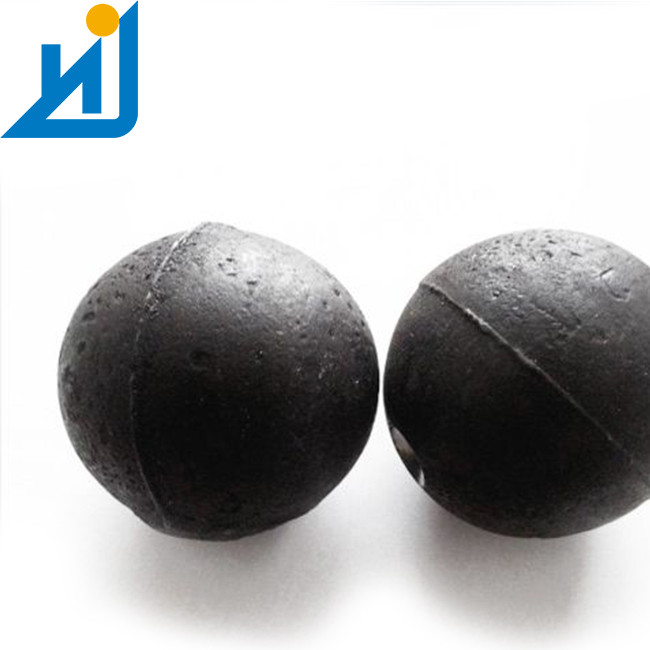

High Chrome Casting Alloy Iron Balls Steel Grinding Media Balls For Power Station
Casting Grinding balls are widely used in cement, mining and chemical industry etc..
The hardness reaches up to 64HRC(the surface and inner hardness tolerance with in 2HRC),
which makes the high wear-resisting property.
In addition, the distribution of the hardness gradient is average.
The property- low wear rate, good toughness, prolongs its life, improves the productivity of the ball mill,
and lowers user’s cost.
Chemical Composition
C
|
Si
|
Mn
|
Cr
|
Mo
|
Cu
|
P
|
S
|
|
high Chrome steel ball
|
2.0-3.2
|
≤1.0
|
0.3-2.5
|
10.0-28.0
|
≤3.0
|
≤1.0
|
≤0.06
|
≤0.06
|
Medium chrome steel ball
|
2.2-3.6
|
≤1.5
|
0.3-1.5
|
3.0-6.0
|
≤1.0
|
≤0.8
|
≤1.0
|
≤1.0
|
Mechanical Properies
|
|
|
Microstructure
|
Toughness (J/cm²)
|
Hardness(HRC)
|
M+C
|
>3.0
|
57-66
|
P+C
|
>2.5
|
45-52
|
Diameter, Diametrical tolerance, Weight, Impact toughness of our grinding balls
Nominal diameter (mm) |
Diametrical tolerance (mm) |
Weight of Single of grinding ball in average |
Number of piece of One ton grinding ball in average |
Impact toughness |
DIA 20MM DIA 25 MM DIA 30 MM DIA 40 MM DIA 50 MM |
+2 -1 |
32 64 110 263 513 |
31250 15625 9090 3802 1949 |
≥12 |
DIA 60 MM DIA 70 MM DIA 80 MM DIA 90 MM DIA 100 MM |
+3 -2 |
888 1410 2104 2996 4110
|
1126 709 475 333 243 |
|
DIA 110 MM DIA 120MM DIA 130 MM |
+4 -2 |
5457 7102 9030 |
182 140 110 |
|
DIA 140 MM DIA 150 MM |
+4 -3 |
11278 13871 |
88 72 |
