Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JN |
| Certification: | SGS ISO |
| Model Number: | 17.46MM 16.668MM 14.288MM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500kg |
| Price: | Negotiable |
| Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
| Supply Ability: | 50 Tons per Month |
|
Detail Information |
|||
| Produce Name: | Bearing Chrome Steel Ball | Grade: | G20 G10 |
|---|---|---|---|
| Hardness: | HRC58-65 HRC | Standard: | 100cr6 |
| Tolerance: | 0.001MM | Application: | Precision Bearing |
| High Light: | ball bearing steel ball,small round metal balls |
||
Product Description

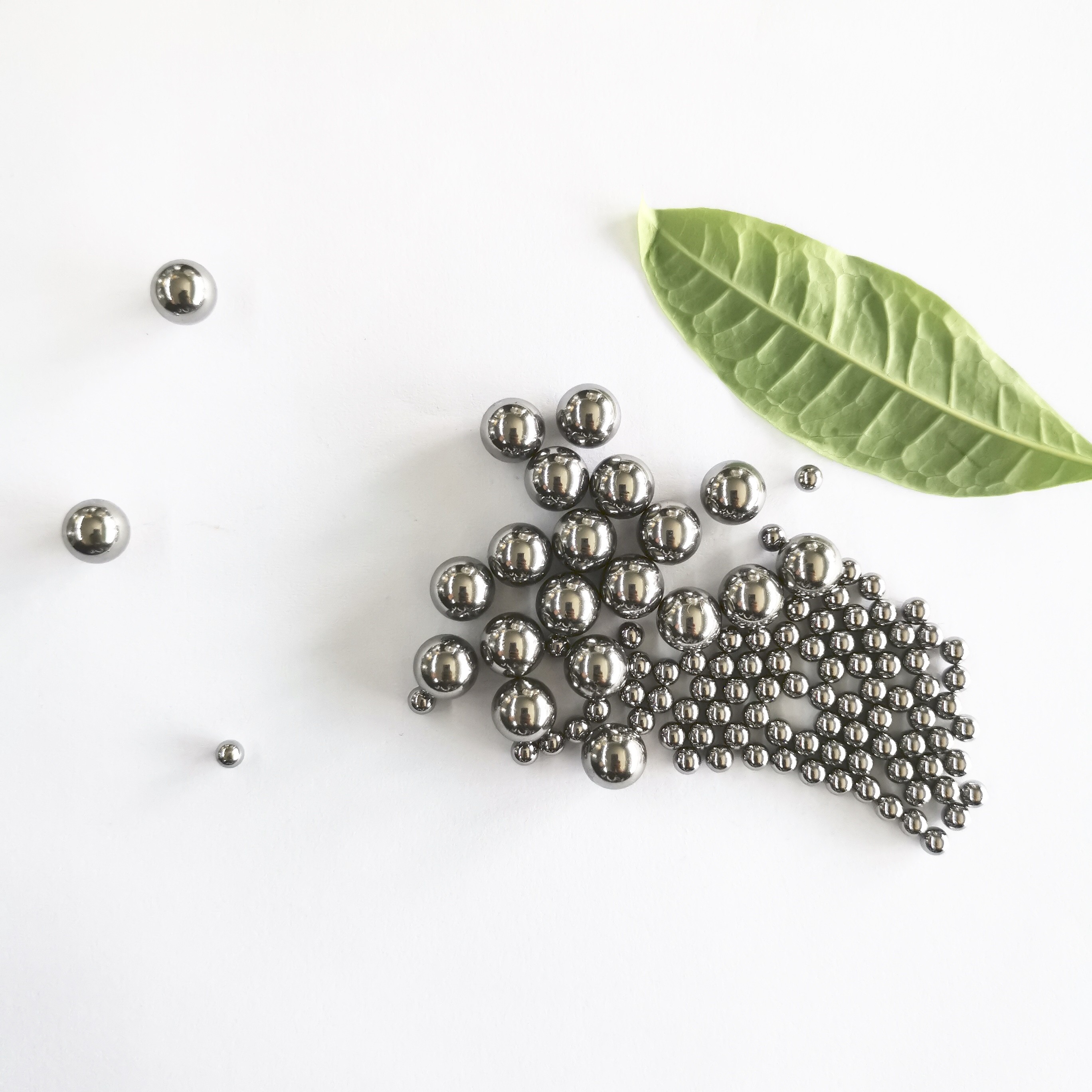

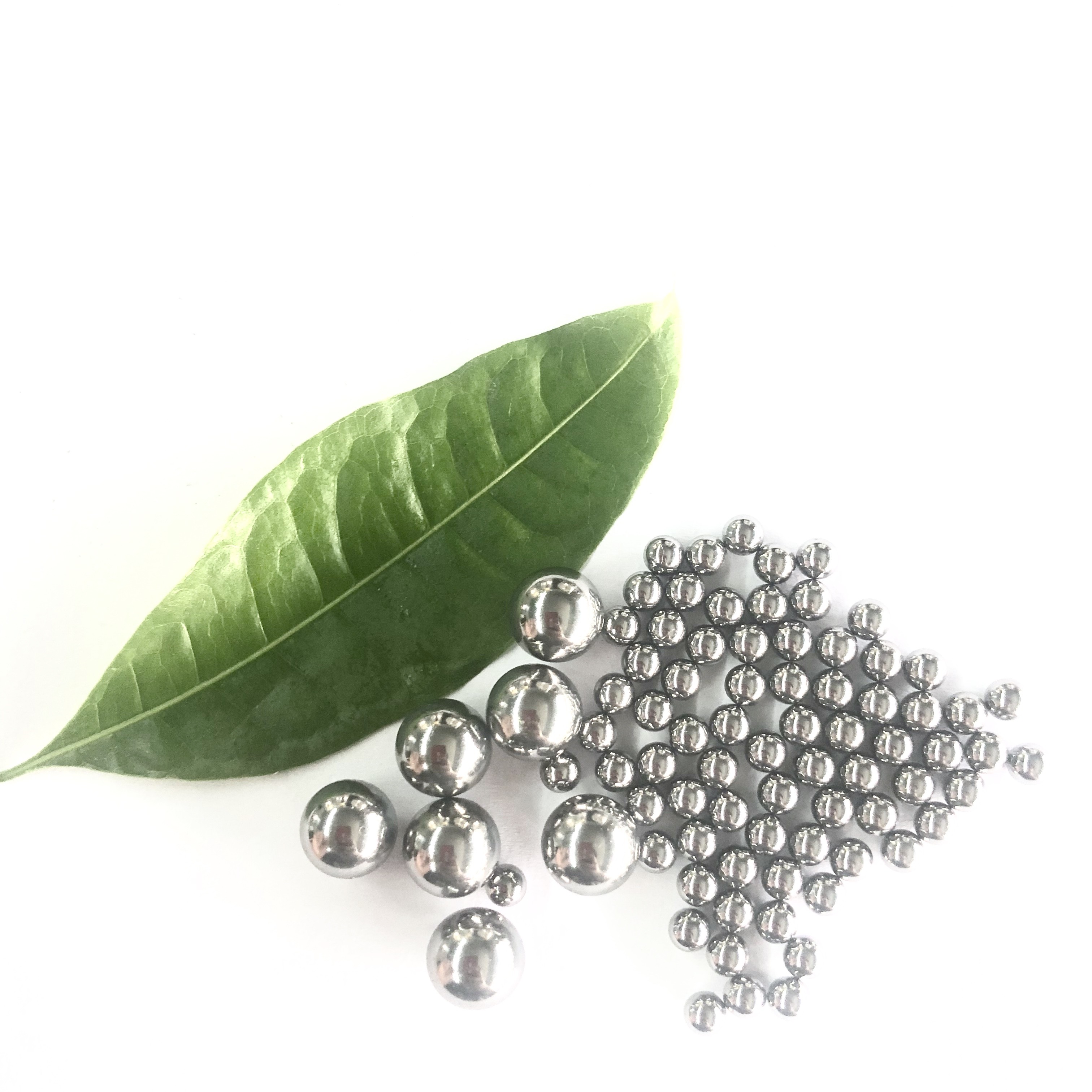

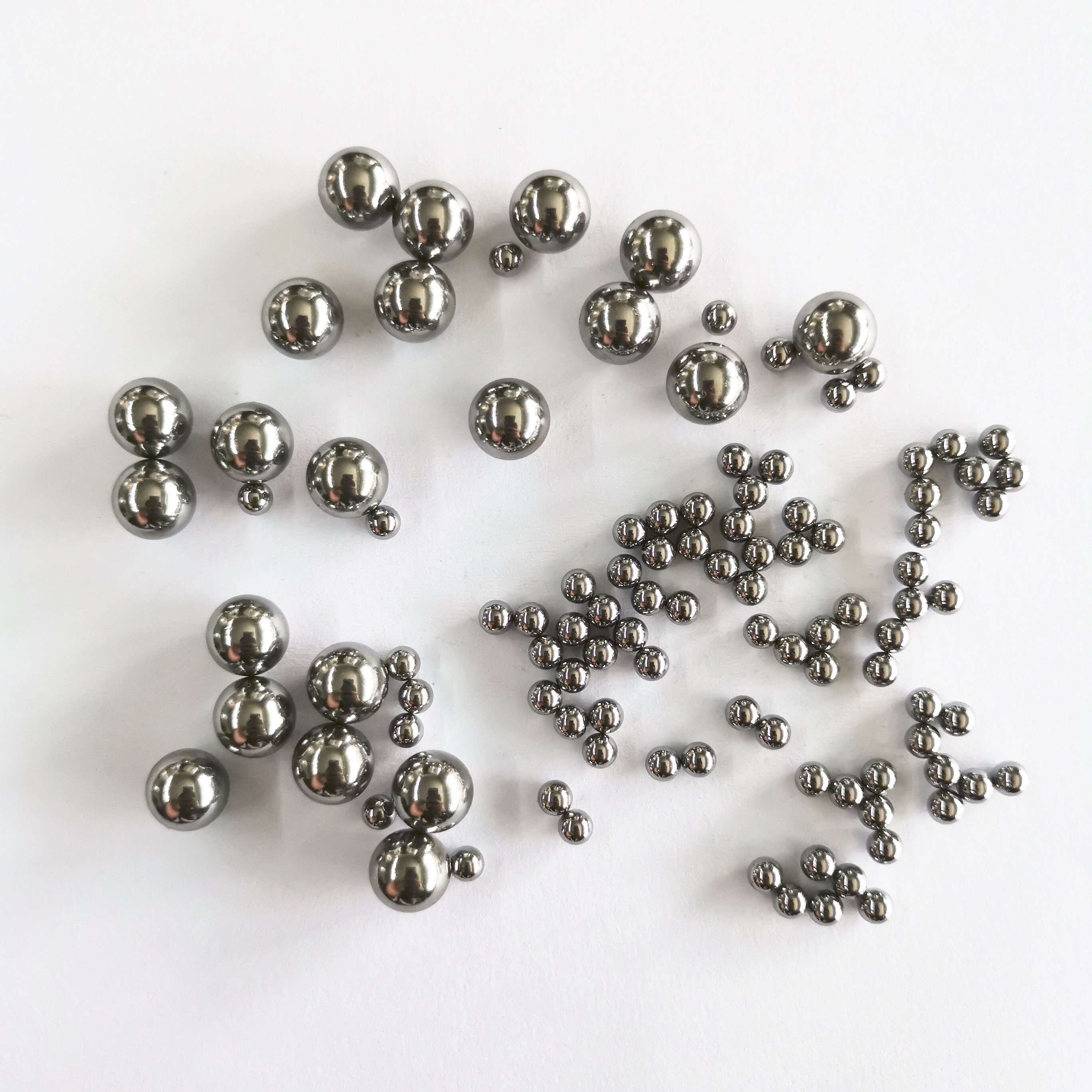

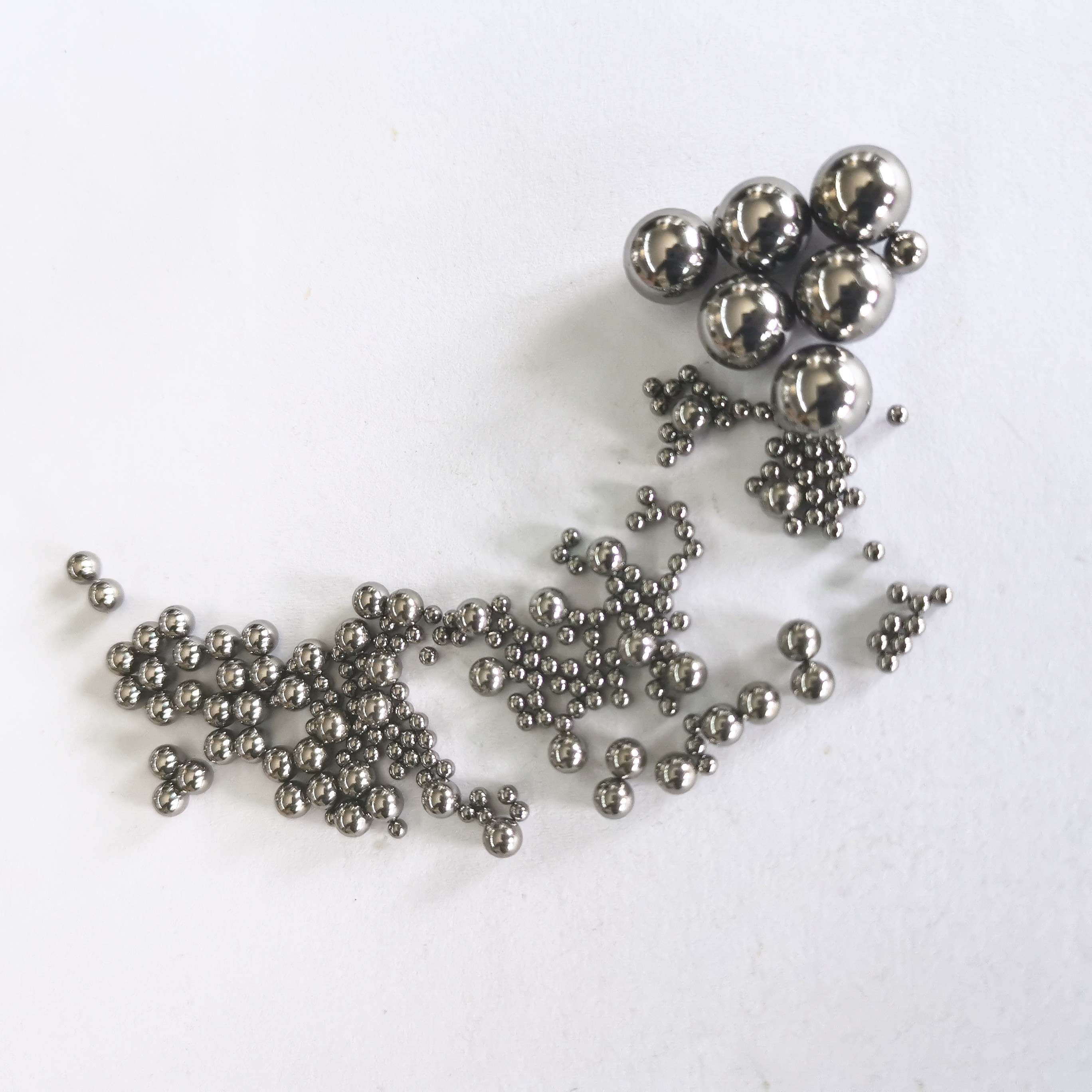

High Precision Bearing Chrome Steel Balls G10 G20 17.46MM 16.668MM 14.288MM
Bearing balls are special highly spherical and smooth balls, most commonly used in ball bearings,
but also used as components in things like freewheel mechanisms.
The balls come in many different grades.Chrome steel is one of a class of non stainless steels
such as AISI 52100, En31, SUJ2, 100Cr6, 100C6, DIN 5401 which are used for
applications such bearings, tools, drills and utensils.
ASIA Type 52100 Chrome Steel Balls are used in the ball and roller bearing industry and
for a variety of automobile applications. These Chrome Steel Balls have excellent surface quality.
They offer superior wear resistance, high hardness and high load bearing capacity as a result of through-hardenin.
Chemical Composition
|
%C
|
%Si
|
%Mn
|
%P
|
%S
|
%Cr
|
%Mo
|
%Cu
|
%Al
|
%O
|
|---|---|---|---|---|---|---|---|---|---|
|
0.93-1.05
|
0.15-0.45
|
0.60-0.80
|
0.025 max
|
0.015 max
|
1.65-1.95
|
0.20-0.35
|
0.30 max
|
0.050 max
|
0.0015 max
|
|
Diameters
|
U.o.M.
|
Diameters
|
U.o.M.
|
Precision grades (ISO 3290-1 / DIN 5401 / AFBMA)
|
|---|---|---|---|---|
|
0.250 - 300.000
|
[mm]
|
1/64 - 12
|
["]
|
G10-15-16-20-24-25-28-40-48-50-60-80-100-200-300-500-600-700-1000
|
|
Property
|
Type
|
U.o.M.
|
Values
|
U.o.M.
|
Values
|
|---|---|---|---|---|---|
|
Hardness
|
Mechanical
|
[HRC]
|
60 - 66
|
-
|
-
|
|
Ultimate compressive strength
|
Mechanical
|
[MPa]
|
2500 - 2600
|
[psix10^3]
|
362 - 377
|
|
Service temperature
|
Thermal
|
[ºC]
|
-60 / 150
|
[ºF]
|
-76 / 302
|
