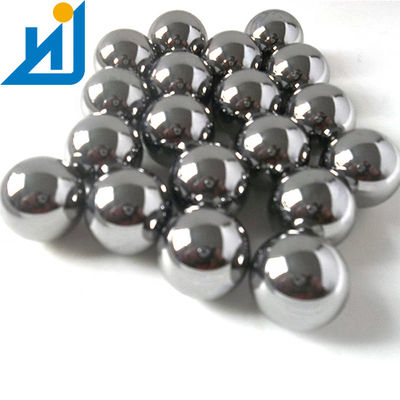

YG8 Wear Resistance Carbide Ball , Tungsten Carbide Sphere 5MM High Hardness

Product Details:
Place of Origin: China
Brand Name: JN
Certification: ISO SGS
Model Number: 5MM 6MM 7MM 8MM 9MM
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10tons per week

Detail Information

Product Name: TC Tungsten Carbide Balls Size Range: 0.5MM-50MM
Surface: Polishing Or Unpolished Material: 100% Virgin Tungsten Carbide
Feature: Higher Hardness And Wear Resistance Hardness: HRA89
High Light:

tungsten carbide beads

,

tungsten ball bearing

Product Description



Carbide Ball YG8 Wear Resistance Tungsten Carbide Ball For Industry Bearing 5MM



(1)  Tungsten carbide has a high strength level, especially for a material that is three times as rigid as steel,

(2)  And 4-5 times as rigid as iron. It resists deformation well, has good impact resistance

(3)  It can handle extremely low and high temperatures easily. these properties make tungsten carbide ball products a popular option for situations where traditional steel has failed.our tungsten carbide ball bearings will therefore suit any situations where high temperatures and stresses combine.

(4)  The material is made from a combination of tungsten and carbon (with the chemical formula: WC),and cobalt and nickel may be added as a binder to enhance the balls' performance.




Physical / mechanical / thermal / electric / magnetic properties

Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
14.82
Young's modulus
E
[GPa]
Mechanical
-
650
Specific heat
c
[J/kg-K]
Thermal
Room temp.
220
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
5.2
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
80.0
Electric resistivity
ρ
[Ω*m*10^-9]



Electric
-
200
Relative magnetic permeability
µ
-
Magnetic
Slighlty ferrom.
max 12



The Application of tungsten carbide ball



The applications of tungsten carbide balls are extremely broad, such as:



precise bearing balls, instruments, meters, pen, spraying machines, pumps, machinery parts,



valve seals, brake pump, extruding hole, oil, hydroelectric acid lab, hardness measuring instrument,



fishing gear, with heavy, ornamented, finished, and some other high-end industry!



The characteristics of tungsten carbide ball



Tungsten carbide balls are ideal for applications.



It hardness must be accompanied by high resistance to wear and impact.



They are well-suited to elevated temperatures, corrosion, humidity, abrasion,



and poor lubrication conditions.
