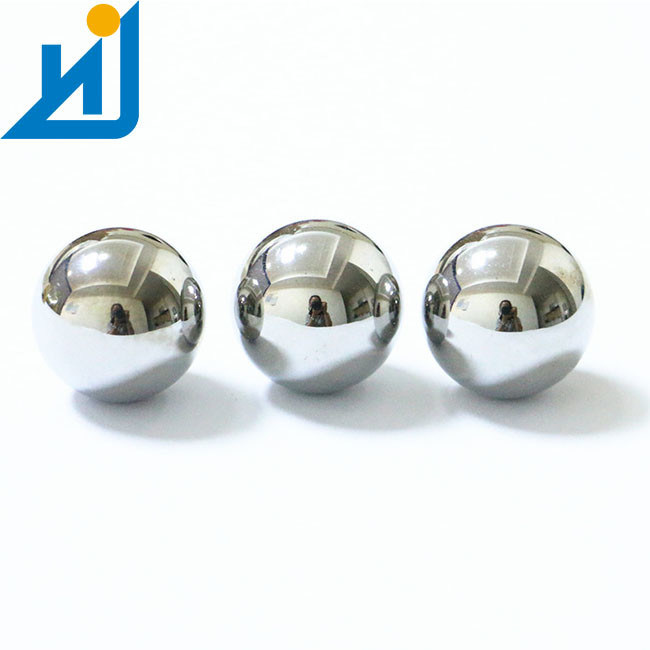

AISI304 Steel Ball For Bearing

Product Details:
Place of Origin:	ShanDong
Brand Name:	JN
Certification:	SGS
Model Number:	AISI304
Payment & Shipping Terms:
Minimum Order Quantity:	500kg
Price:	Negotiable
Packaging Details:	Ploy bag+25kg carton box+1000kg wooden box
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 ton/month

Contact Now

Detail Information
Product Description

Detail Information
Material:	Stainless Steel	Application:	Perfume Miniature Pumps, Seams
Hardness:	HRC20-39	Tolerance:	±1%
Grade:	300 Series
High Light:	AISI304 Stainless Steel Balls , AISI304 Stainless Balls

Product Description

Unhardened stainless steel balls, they display good mechanical characteristics, toughness and corrosion

resistance. AISI 304L provides lower carbon content, AISI 302 better mechanical characteristics.

Balls are provided in the passivated condition.Unhardened stainless steel balls, they display good mechanical

characteristics, toughness and corrosion resistance. AISI 304L provides lower carbon content, AISI 302 better

mechanical characteristics. Balls are provided in the passivated condition.

Chemical composition



			Type
			%C
			%Si
			%Mn
			%P
			%S
			%Cr
			%Ni
			%N


			302
			0.150 max
			1.00 max
			2.00 max
			0.045 max
			0.030 max
			17.00-19.00
			8.00-10.00
			0.100 max


			304
			0.080 max
			0.75 max
			2.00 max
			0.045 max
			0.030 max
			18.00-20.00
			8.00-10.50
			0.100 max


			304L
			0.030 max
			0.75 max
			2.00 max
			0.045 max
			0.030 max
			18.00-20.00
			8.00-10.50
			0.100 max



Technical data



			Property
			Type
			U.o.M.
			Values
			U.o.M.
			Values


			Hardness
			Mechanical
			[HRC]
			20 - 39 (1)*
			[HV]
			100 - 250 (2)*


			Ultimate tensile strength
			Mechanical
			[MPa]
			500 - 1300
			[psix10^3]
			72 - 188


			Service temperature
			Thermal
			[ºC]
			-196 / 700
			[ºF]
			-320.8 / 1697


Our Advantage Service
We have our own developing and designing team ,which ensure our own technological and innovative products for customers!

For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products!

For any customers who send us the samples of some products, we will design and develop better ones based on the samples

For every customers ,we will choose the best fit products for their usage.

We can according to any customers's design to do sample for them!

We are manufacture, factory so we have the ability of mass production!
