China Stainless Steel Balls manufacturer

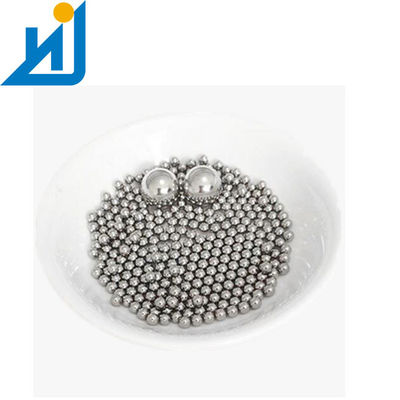

8.3g SS316 Stainless Steel G100 Solid Ss Ball For Valve 12.7mm 1/2 Inch

Product Details:
Place of Origin: ShanDong
Brand Name: JN
Certification: SGS
Model Number: 12.7mm 1/2 inch
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 Ton/month

Detail Information

Material: 316 Stainless Steel Hardness: HRC57.0~HRC65.0
Density: 7.70 Coefficient Of Linear Ehermal Expansion: 10.2
Specific Heat: 450 Color: Sliver
High Light:

stainless steel round balls

,

round steel balls

Product Description



8.3g SS316 Stainless Steel G100 Solid Balls For Valve 12.7mm 1/2 inch



Production Description

They display good mechanical characteristics, toughness and corrosion resistance.



AISI 304L provides lower carbon content, AISI 302 better mechanical characteristics.



Balls are provided in the passivated condition.



Special bearings and pumps, aerosol pumps, gardening and household sprayers, perfume miniature pumps, seams,



medical application valves, agricultural backpack sprayers.



They are used in foodstuff, aerospace and military industry.



Chemical composition



Type %C %Si %Mn %P %S %Cr %Ni %N
302 0.150 max 1.00 max 2.00 max 0.045 max 0.030 max 17.00-19.00 8.00-10.00 0.100 max
304 0.080 max 0.75 max 2.00 max 0.045 max 0.030 max 18.00-20.00 8.00-10.50 0.100 max
304L 0.030 max 0.75 max 2.00 max 0.045 max 0.030 max 18.00-20.00 8.00-10.50 0.100 max

International standards

ITA USA GER FRA UK RUS CHN JAP
X10CrNi18-8 302 1.4310 Z11CN18-08 301S21 12KH18N9 1Cr18Ni9 SUS301
X5CrNi18-10 304 1.4301 Z7CN18-09 304S15 08KH18N10 0Cr18Ni9 SUS304
X2CrNi18-9 304L 1.4307 Z3CN18-10 304S11 04KH18N10 00Cr19Ni10 SUS304L

Physical / mechanical / thermal / electric / magnetic properties

Property Symbol U.o.M. Type Notes Values
Density δ [g/cm3] Physical Room temp. 7.95
Young's modulus E [GPa] Mechanical - 200
Specific heat c [J/kg-K] Thermal Room temp. 500
Coefficient of linear thermal expansion α [10^-6/ºC] Thermal (ΔT=0-100°C) 17.5
Thermal conductivity λ [W/(m·K)] Thermal Room temp. 15.8
Electric resistivity ρ [Ω*m*10^-9] Electric - 710
Relative magnetic permeability µ - Magnetic Paramagnetic 1.025*

Technical data

Property Type U.o.M. Values U.o.M. Values
Hardness Mechanical [HRC] 20 - 39 (1)* [HV] 100 - 250 (2)*
Ultimate tensile strength Mechanical [MPa] 500 - 1300 [psix10^3] 72 - 188
Service temperature Thermal [ºC] -196 / 700 [ºF] -320.8 / 1697
Corrosion Resistance
Very good corrosion resistance with respect to organic substances, oxidating solutions, foodstuff, sterilizing solutions. Good resistance with respect to atmospheric corrosion and dyes. They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and to stress corrosion when temperature exceeds 60°C. They do not resist to sulfuric acid solutions. AISI 302 shows slightly best corrosion resistance with respect to AISI 304/304L stainless steels.

Notes

Property Description
Hardness* Balls can be supplied in the (1) COLD WORKED (HRC 20-39, standard product) or (2) ANNEALED (HV 100-250, on demand) conditions.
Magnetism Eventual magnetism of AISI 316 balls and in general of all austenitc stainless steels strictly depends by the manufacturing process, specific inquiries for not magnetic balls should priorly reported.
Precision Grade** On specifical request and for big quantities, we can supply G10 and G16 precision grade balls. Diameters from 3.000 mm to 1/2".
Precision Grade** On specifical request we can supply G20-24-25-28-40-48-50-60-80 precision grade balls.



8.3g SS316 Stainless Steel G100 Solid Ss Ball For Valve 12.7mm 1/2 Inch 0
