G25 Tungsten Machinery Carbide Sizing Balls For Radio 4.76MM 9.525MM 3.56MM

Product Details:
Place of Origin: China
Brand Name: JN
Certification: ISO SGS
Model Number: 4.76MM 9.525MM 3.56MM
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: Negotiable
Packaging Details: Ploy bag+25kg carton box+1000kg wooden box
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10tons per week

Detail Information

Product Nam: YG8 Tungsten Carbide Ball Size Range: 0.3mm-90mm
Type: Power Tool Parts Material: YG8 , YG8X , YG10
Feature: Higher Hardness And Wear Resistance Application: High-tech Machinery Industry
High Light:

tungsten carbide beads

,

tungsten ball bearing

Product Description

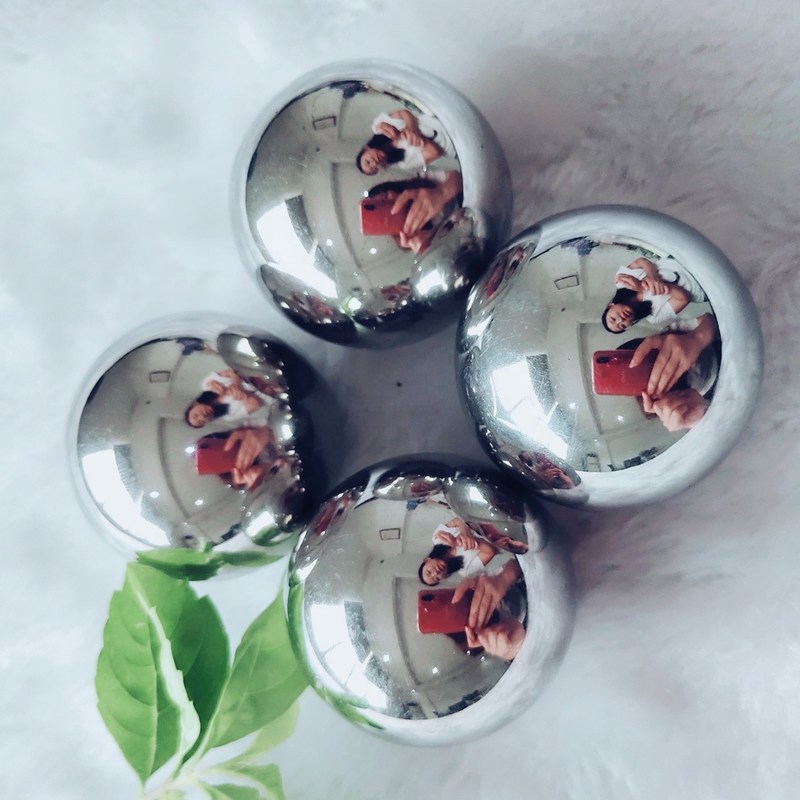

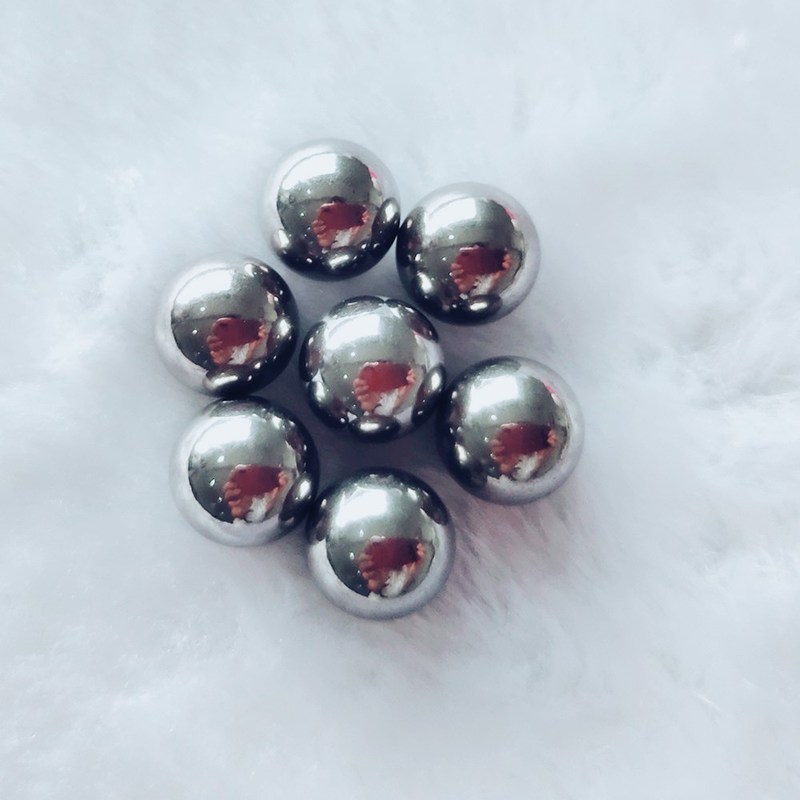

G25 Tungsten Carbide Machinery Bearing Balls For Radio 4.76MM 9.525MM 3.56MM


Tungsten carbide balls provide a binder percentage slightly higher than the standard balls (7-9%).

They are available on demand.

The mechanical properties and corrosion resistance are a little lower if compared to standard K20 balls.

Virgin powder is strictly used into this kind of production.


Applications
Special and hydraulic precision valves, special bearings, couplers, flow meters, sprayers, recirculating balls, ball spindles, tooling machines, sliding rails, ballpoint pens, pin and tips for indicators, precision measurement instruments, medical instruments. They are used in naval, mining, petrol and coining industry.

Chemical composition

Type
%WC
%Co
-
-
-
-
-
-
-
-
-
WC30
91.00-93.00
7.00-9.00
-
-
-
-
-
-
-
-
-

International standards

Type
ISO
USA
CHN
-
-
-
-
WC30
K30
C2
YG8
-
-
-
-

Physical / mechanical / thermal / electric / magnetic properties

Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
14.70
Young's modulus
E
[GPa]
Mechanical
-
630
Specific heat
c
[J/kg-K]
Thermal
Room temp.
227
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
6.0
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
82.0
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
175
Relative magnetic permeability
µ
-
Magnetic
Slighlty ferrom.
max 12

Technical data

Property
Type
U.o.M.
Values
U.o.M.
Values
Grain size
Physical
[µm]
1.2 - 1.6
-
-
Hardness
Mechanical
[HRA]
89.5 - 91.0
[HV]
1480 - 1700
Ultimate compressive strength
Mechanical
[MPa]
5400 - 5700
[psix10^3]
784 - 826
Service temperature
Thermal
[ºC]
-196 / 500
[ºF]
-320.8 / 932

Corrosion Resistance
As a general rule Tungsten Carbides with Cobalt binder show good corrosion resistance into basic solution while they are not resisting into acid solutions.
