Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | JN |
Certification: | SGS ISO |
Model Number: | 2mm 1.5mm |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500kg |
Price: | Negotiable |
Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
Supply Ability: | 25 Tons per Month |
Detail Information |
|||
Product Name: | Braille Alphabets Steel Beads | Grade: | G20 |
---|---|---|---|
Hardness: | HRC25 | Density: | 7.82g/cm3 |
Young's Modulus: | 200GPa | Application: | Braille Alphabets |
High Light: | hardened steel balls,soft steel balls |
Product Description

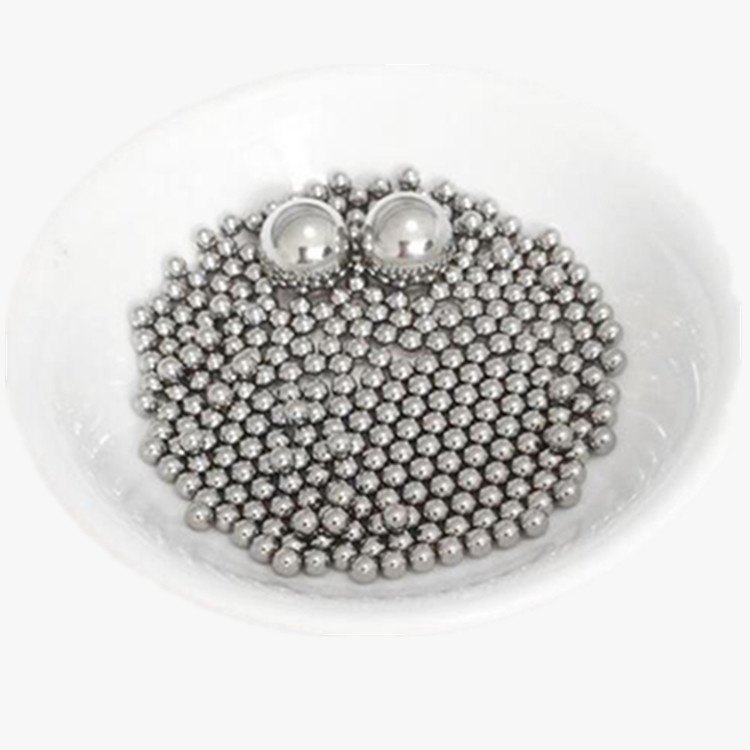

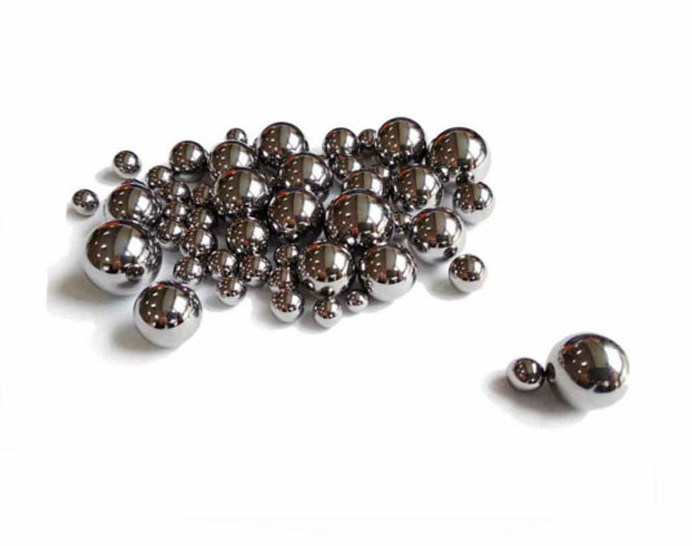

Carbon Steel Ball For Braille Alphabets AISI1015 Solid Steel Beads
Carbon steel balls suppliers can provide a wide range of high-quality components
in a vast range of sizes for numerous applications.
Carbon steel bearing balls such as the AISI 1010/1015 types of
cemented balls are ideal for use as furniture bearings and can be found
in drawer rails or sliding rails, among other products, while low carbon balls
such as type 1010 and 1015 can be used in stirrers and mixers in
non-aggressive environments, in welding appliances or as curtain mechanisms.
Chemical Composition
Type
|
%C
|
%Si
|
%Mn
|
%P
|
%S
|
---|---|---|---|---|---|
1010
|
0.08-0.13
|
0.10-0.35
|
0.30-0.60
|
0.040 max
|
0.050 max
|
1015
|
0.12-0.18
|
0.10-0.35
|
0.30-0.60
|
0.040 max
|
0.050 max
|
Mechanical Properties
Property
|
Type
|
U.o.M.
|
Values
|
U.o.M.
|
Values
|
---|---|---|---|---|---|
Hardness
|
Mechanical
|
[HRC]
|
55 - 65
|
-
|
-
|
Ultimate tensile strength
|
Mechanical
|
[MPa]
|
300 - 400
|
[psix10^3]
|
43 - 58
|
Service temperature
|
Thermal
|
[ºC]
|
-40 / 500
|
[ºF]
|
-40 / 932
|
Property
|
Symbol
|
U.o.M.
|
Type
|
Notes
|
Values
|
---|---|---|---|---|---|
Density
|
δ
|
[g/cm3]
|
Physical
|
Room temp.
|
7.82
|
Young's modulus
|
E
|
[GPa]
|
Mechanical
|
-
|
200
|
Specific heat
|
c
|
[J/kg-K]
|
Thermal
|
Room temp.
|
468
|
Coefficient of linear thermal expansion
|
α
|
[10^-6/ºC]
|
Thermal
|
(ΔT=0-100°C)
|
11.8
|
Thermal conductivity
|
λ
|
[W/(m·K)]
|
Thermal
|
Room temp.
|
57.9
|
Electric resistivity
|
ρ
|
[Ω*m*10^-9]
|
Electric
|
-
|
155
|
Relative magnetic permeability
|
µ
|
-
|
Magnetic
|
Ferromagnetic
|
> 500
|
There are dozens of uses for carbon steel bearing balls ranging from the practical to the purely decorative.
Carbon steel balls suppliers like RGP BALLS can even manufacture balls to suit specific customer needs.
High carbon steel balls such as the AISI 1085 range are characterized by their hardness and
are widely used in industry or manufacturing where good resistance to wear is essential.
Common uses for these durable steel balls include in polishing or mulling machines,
bearing units, castors and locks.
